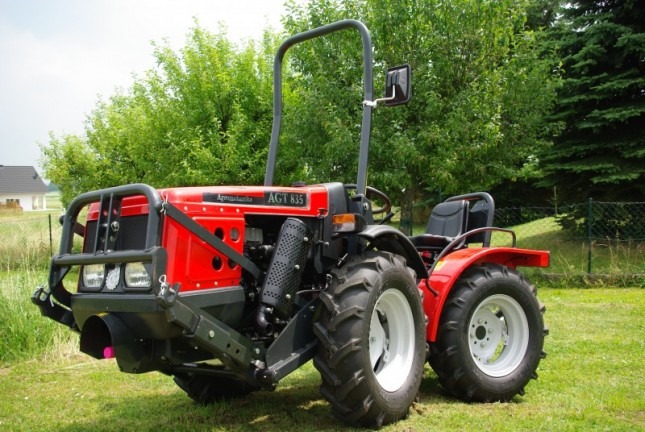

Tractor AGT 830-835
- Home
- New Machinery
- Farming Equipment
- Tractors
- AGT tractors
- Tractor AGT 830-835
| Make: | AGT |
| Model: | 830-835 |
| Engine: | 4 taktų dyzelinis variklis |
| PTO Speed: | 540/1000 aps./min. |
| Weight : | 1085 - 1138 kg |
| Power: | 30-37 AG |
| Power kW: | 22/30 - 27/37 |
Technical data
| Type of tractor | AGT 830 | AGT 835 |
| Type of chassis | articulated | articulated |
| Engine | Lombardini 9 LD 626.2 | Lombardini LDW 1603 |
| Type of engine | 4 - stroke diesel engine | 4 - stroke diesel engine |
| Number of cylinders /Displacement | 2/1248 cm3 | 3/1649 cm3 |
| Power (kW/HP) | 22/30 | 27/37 |
| Engine rpm | 2800 rpm | 2800 rpm |
| Cooling | air - cooled | water - cooled |
| Fuel tank | 16 l | 28 l |
| Gearbox | Non‐syncronised: 6 forward /3 reverse | Non‐syncronised: 6 forward /3 reverse |
| Drive | permanent 4-wheel drive (4WD) | permanent 4-wheel drive (4WD) |
| Speed | 2,4 ‐ 22 km/h (25 km/h with wheels 18") | 2,4 ‐ 22 km/h (25 km/h with wheels 18") |
| Differential lock | 100 % on the front axle | 100 % on the front axle |
| Power take-off (PTO) | 540/1.000 rpm | 540/1.000 rpm |
| Steering system | hydraulic | hydraulic |
| Brakes | mechanical drum brakes, behind | mechanical drum brakes, behind |
| Lift hydraulics | 3 – point linkage system, I. category | 3 – point linkage system, I. category |
| Lift capacity | 890 kg | 890 kg |
| Wheels | 7.50-16 | 7.50-16 |
| Dimensions (width) | 95-160 cm | 95-160 cm |
| lenght | 289,5 cm | 289,5 cm |
| height | 200 cm | 200 cm |
| Turning circle | 290 cm | 290 cm |
| Weight (kg) | 1.085 | 1.138 |
| Equipment of standard version | electrical installation 12 V, 70 A; wheels 7.50‐16; rear PTO with 540/1.000 rpm; 1x double acting valve, 1x single acting valve (3x quick couplings behind) |
| Additional equipment | front PTO with 1.000 rpm, front hydraulics, semi‐cabin, trailer towing device, comfortable seat, wide range of wheels, weights for wheels, etc. |
