| Make: | Pneusej |
| Model: | MV |
| Working Width: | 5m-6m-8m |
| Seed Tank Volume: | 2000 l |
| Operating Speed: | 5-12 km/val. |
| Weight : | 2020-2520 |

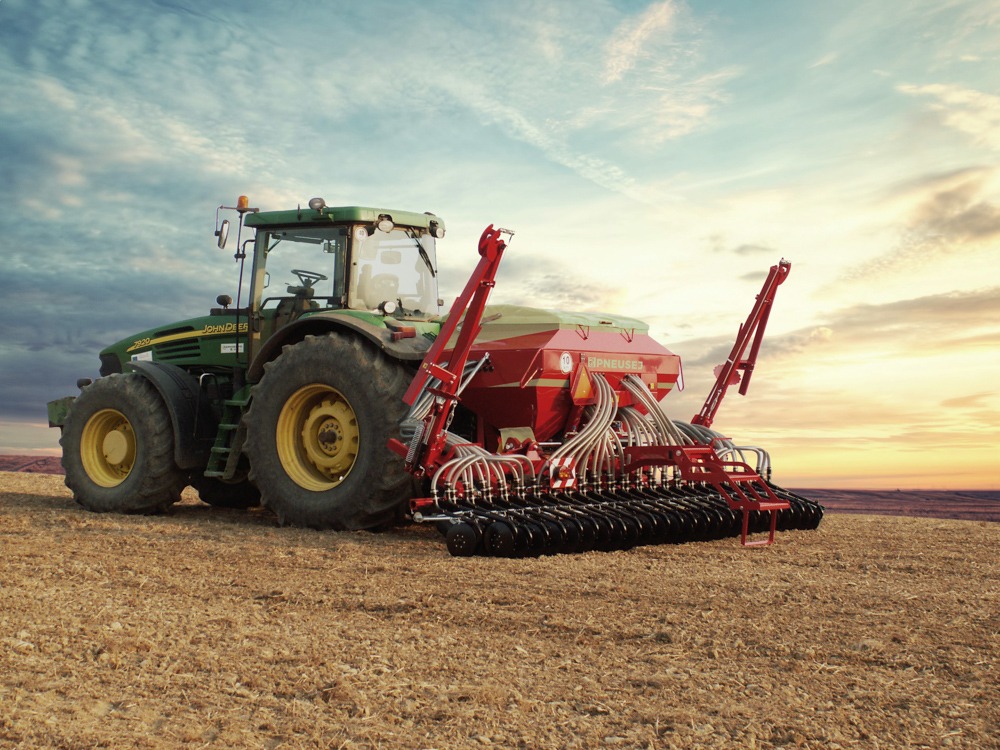

The pneumatic seed drill MV is an ideal machine for medium and large farms looking for a cost-effective way to seed with high accuracy in conventional tillage practice. Seed drill Pneusej MV is produced in working width 5 m – 6 m – 8 m with foldable frame for 3 m transport width, and can be connected with three-point hitch with a tractor or with a machine for soil preparation. A big advantage is use of large tires with dimension 31x15,5-15”.
Seed drill is equipped with two dosing units Accord with centrally adjustable seeding rate.
|
Model |
MV 500 |
MV 600 |
MV 800 |
|
Working width (m) |
5 |
6 |
8 |
|
Transport width (m) |
3 |
||
|
No. of rows (pc) |
36/48 |
40/48 |
56/64 |
|
Row spacing (cm) |
13,8/12,5 |
15/12,5 |
14/12,5 |
|
Hopper (l) |
2000 |
||
|
Coulters |
DXD RCI |
||
|
Coulter pressure (kg/pc) |
35 |
||
|
Depth adjustment |
Centrally / individually |
||
|
Fan drive |
1000 RPM or hydraulic drive |
||
|
Weight without seed (kg) |
2020 |
2110 |
2520 |
|
Power required (HP) |
160 |
160 |
180 |
|
Power required (kW) |
119 |
119 |
134 |
|
Working speed (km/h) |
5-12 |
||
|
Efficiency (ha/h) |
2,5- 6 |
3,6-7,1 |
4,1-8,5 |
|
Connection via lower link |
Cat. III |
||
|
Feed opening (m) |
1,34x1,16 |
||
|
Filloing height (m) |
2.05 |
||
|
Track tillers of seed drill (pc) |
2x2 |
||
|
track tillers of tractor (pc) |
2x2 |
||
|
Tires |
31x15,5-15 |
||
