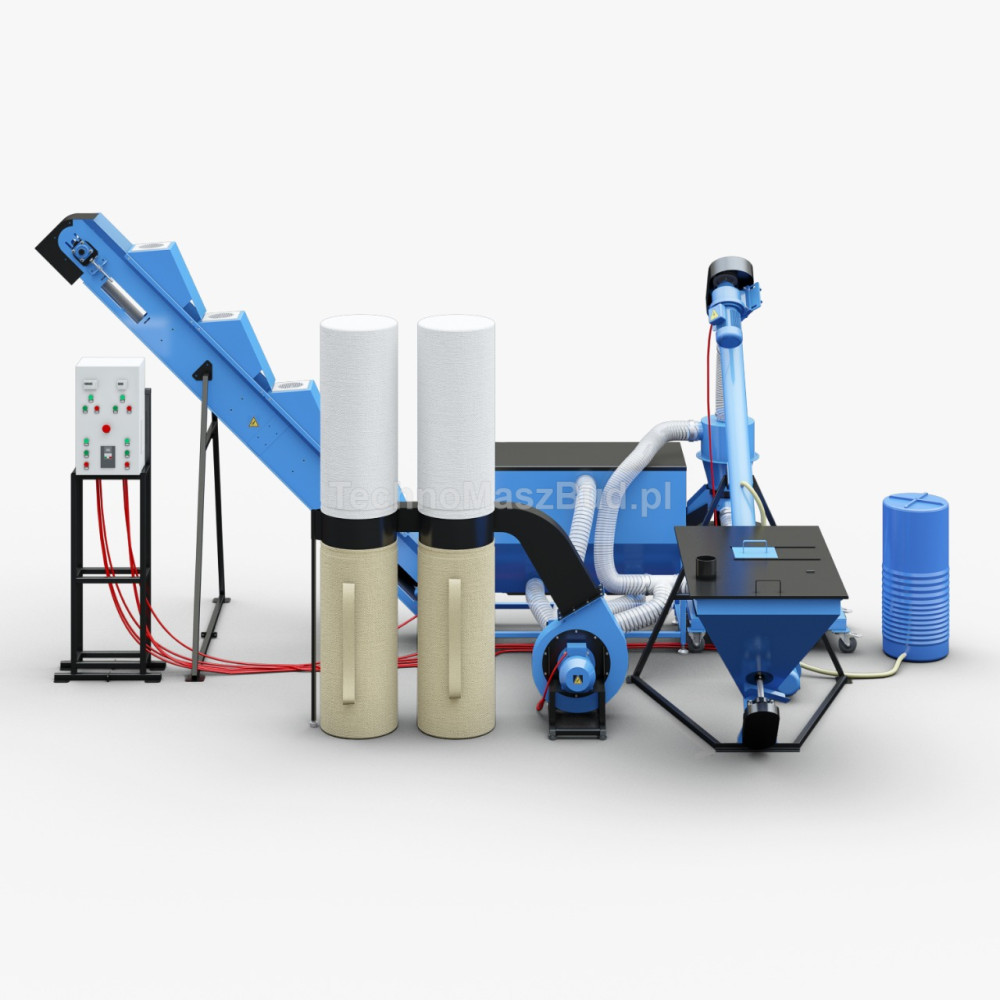

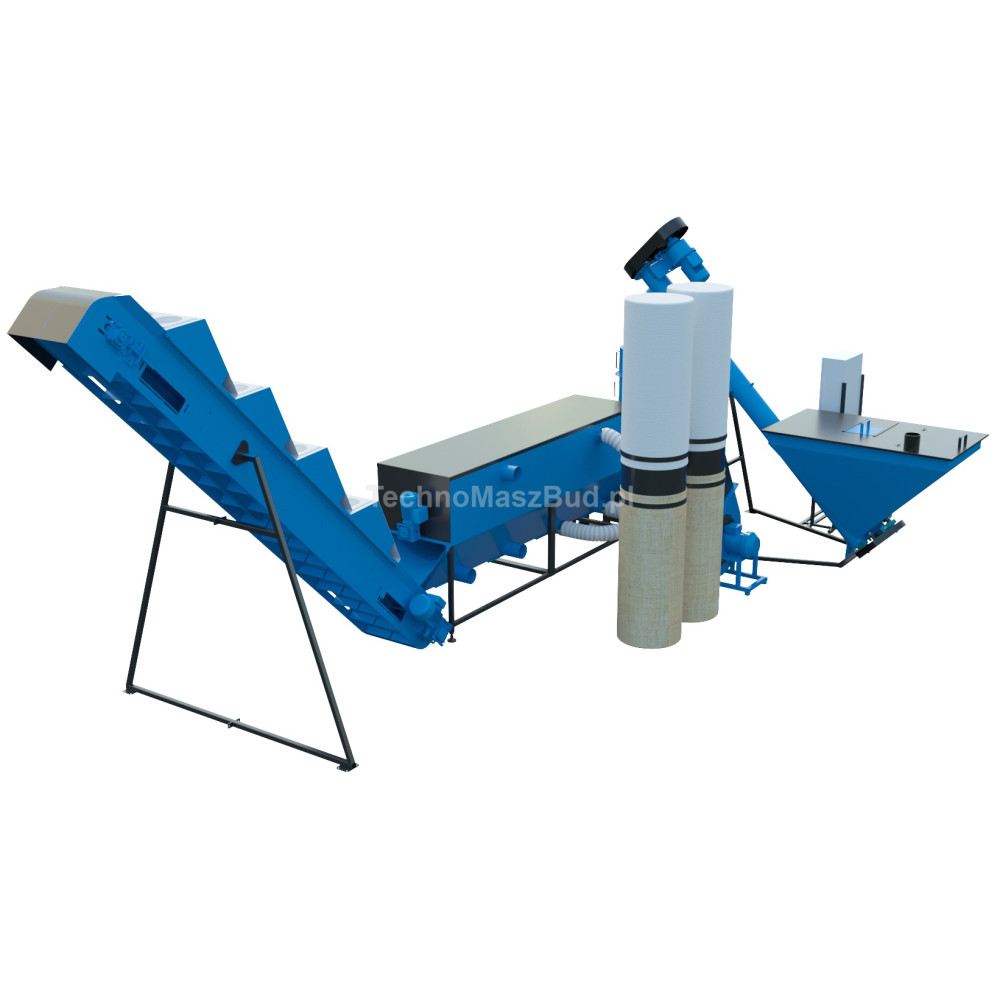

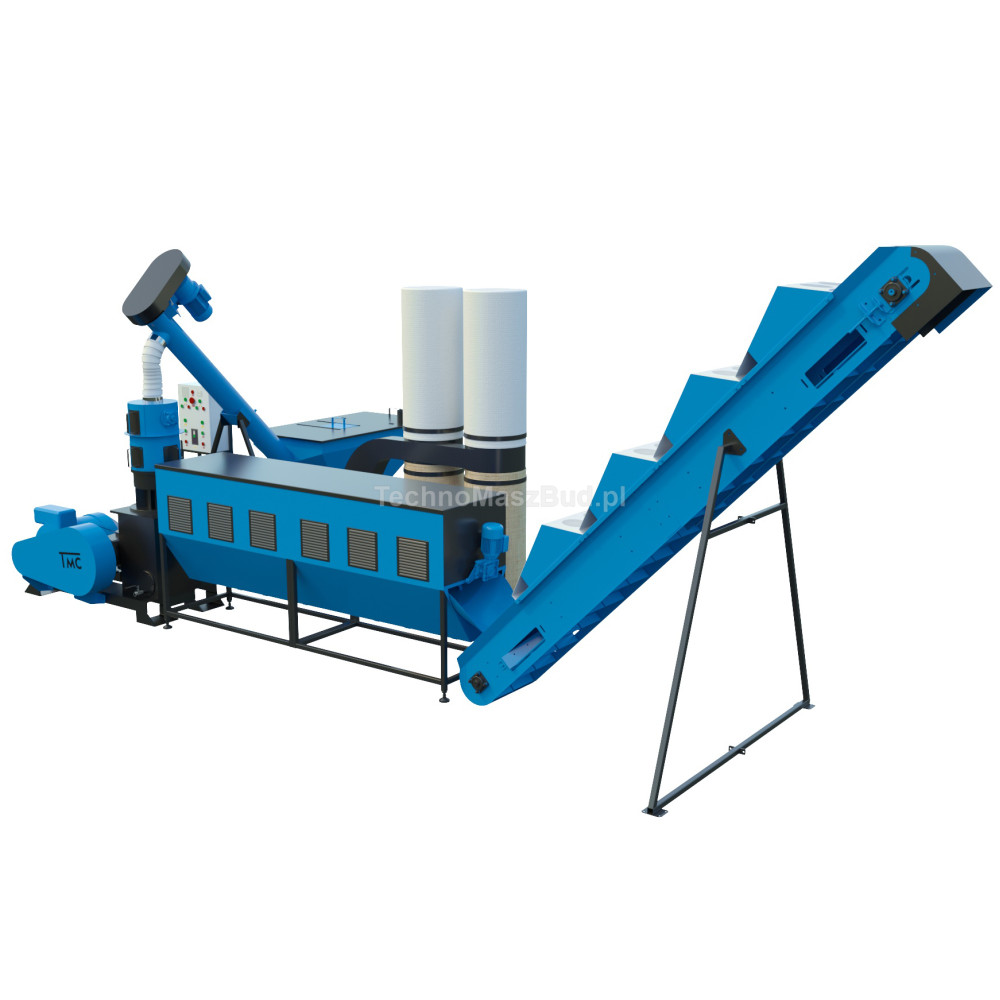

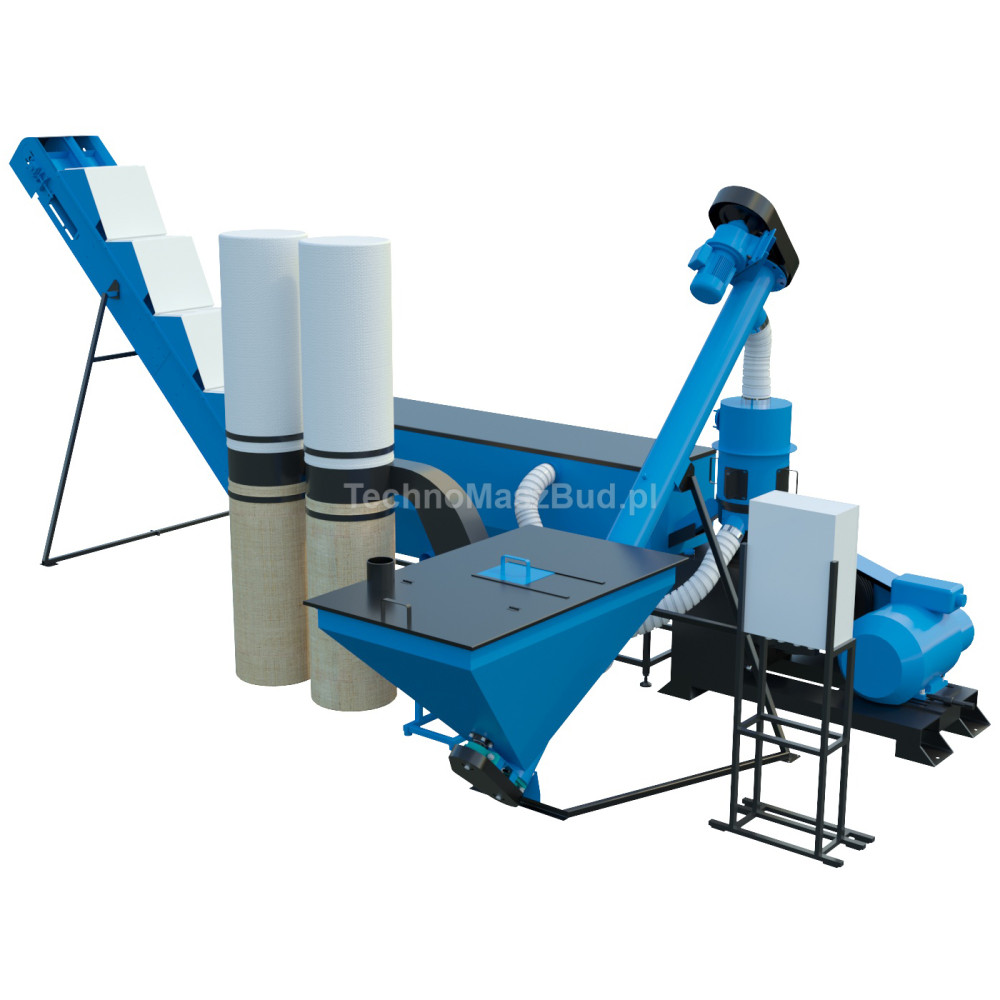

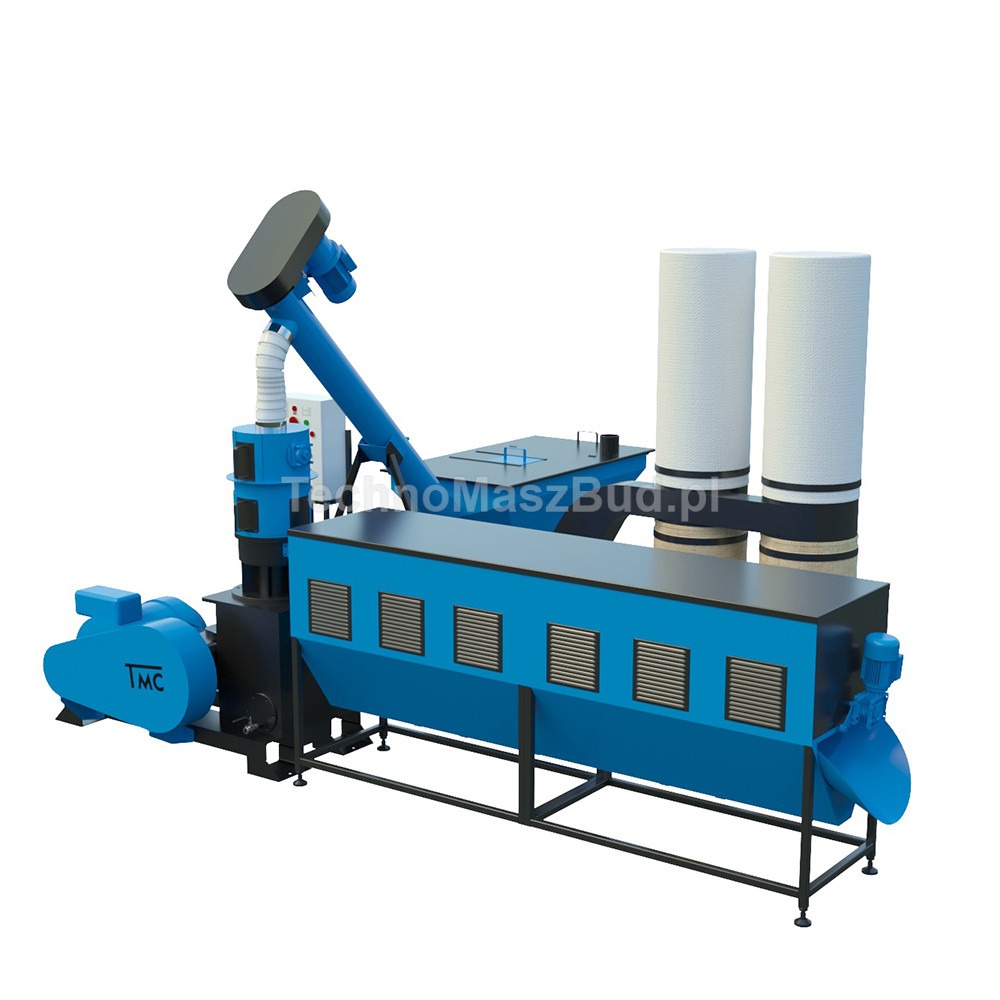

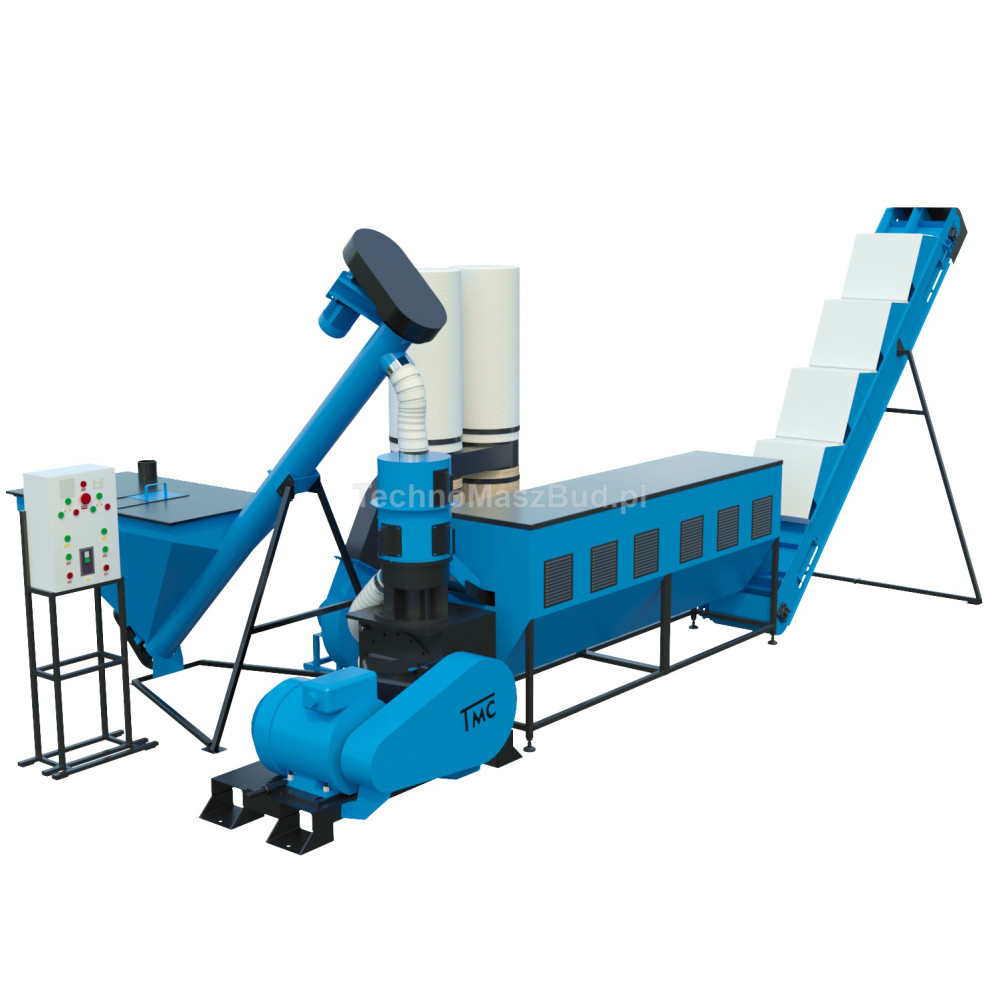

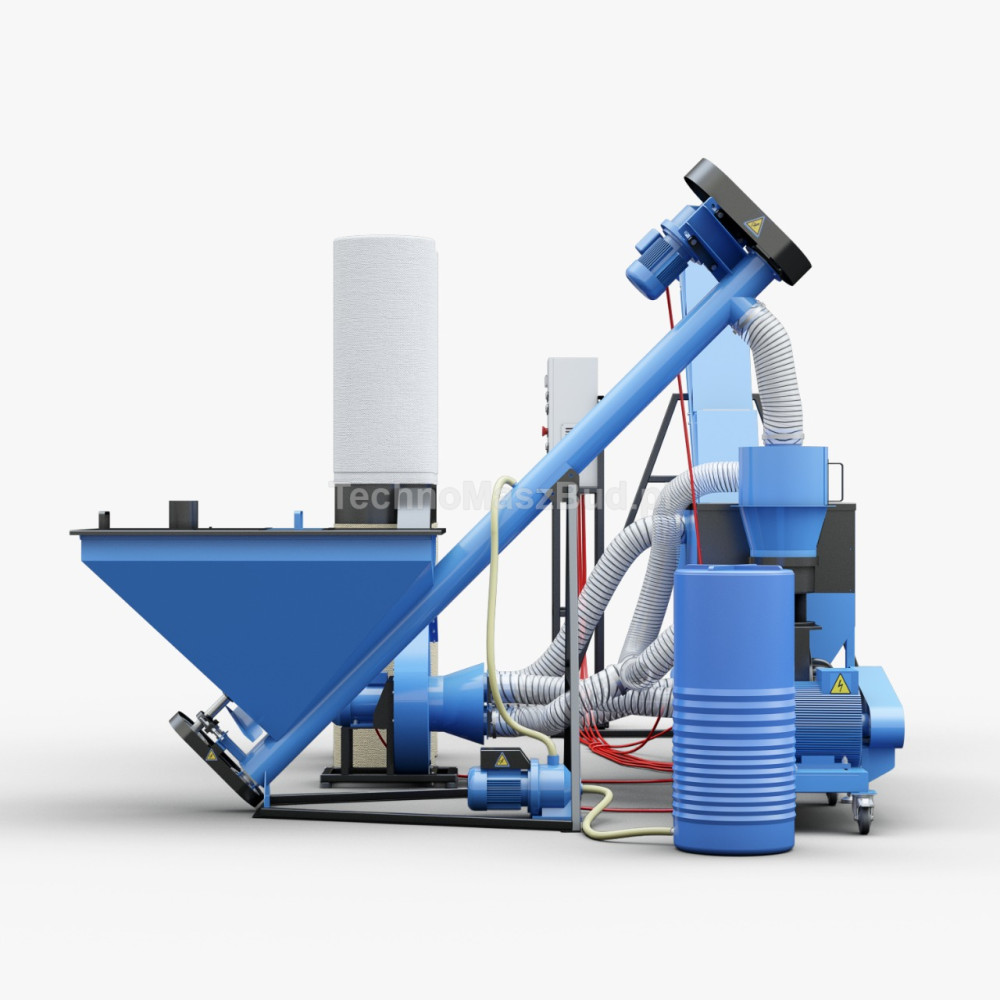

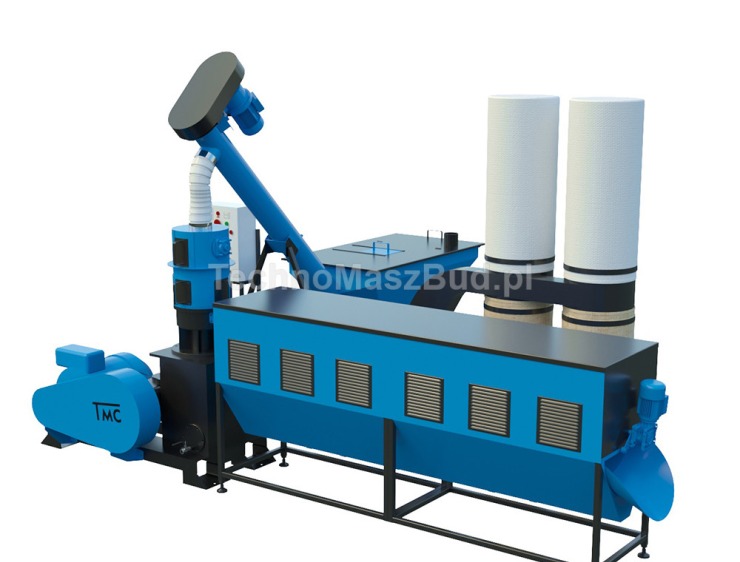

Pellet production line LDG-4000 (KOMBI)

LDG-4000 KOMBI Pellet Production Line is a modern and versatile technological solution that enables the granulation of various raw materials. The machine is intended for the production of pellets with a diameter from 2 mm to 8 mm, allowing for the manufacture of both wood fuel pellets and pelleted animal feed. The line’s capacity reaches up to 700 kg/h for feed production and up to 650 kg/h for pellet production, making it a reliable solution for the agricultural, woodworking, sawmill, and energy industries.

The LDG-4000 KOMBI pellet production line equipped with the PRIME-400 pelletizer is a modern biomass granulation set.

This equipment differs from the LDG-3000 KOMBI granulation line mainly by the use of a more powerful pelletizer. The granulation line can be used both for pellet and compound feed production — for your own needs or in commercial operations.

The LDG-4000 KOMBI line includes:

1. Screw Feeder PS-200:

This component consumes 0.75 kW of electricity and allows smooth raw material feed rate adjustment via a frequency converter.

2. Moisturizing system:

The main elements of the moisturizing unit are a valve, pump, 100-liter water tank, and nozzle. The system is connected to a stand above the working area, enabling the required moisture to be added during granulation. Power consumption is 0.37 kW.

3. Reliable PRIME-400 pelletizer:

The PRIME-400 granulator easily handles various types of raw materials, reaching a capacity of up to 650 kg/h for sawdust pellets and up to 700 kg/h for feed granules. It is equipped with a 37 kW motor.

4. Granule/Pellet Calibrator-Cooler KC-200:

This component additionally cools the product, since pellets heat up during pelleting. The device removes dust and crumbs with a special drum. Power usage is 0.12 kW.

5. Closed Extraction System SO-2:

This device, using a fan, provides air circulation necessary for cooling the granules, and collects calibrated raw material residues and dust into bags attached to the casing. The system’s power is 1.5 kW.

6. Control panel:

Thanks to its small dimensions and built-in automation cooling system, the control panel is reliable and easy to install near the production line. It includes an ammeter and thermal protection for each motor in the line.

The belt conveyor is not included in the set

Cables for connecting the line are not included in the set

LDG-4000 KOMBI Pellet Production Line Performance:

    wood waste – up to 650 kg/h,
    straw – up to 550 kg/h,
    feed – up to 700 kg/h,
    sunflower husks – up to 550 kg/h.
