| Make: | TechnoMaszBud |
| Model: | LDG-3000 (KOMBI) |
| Power: | 25 kW |

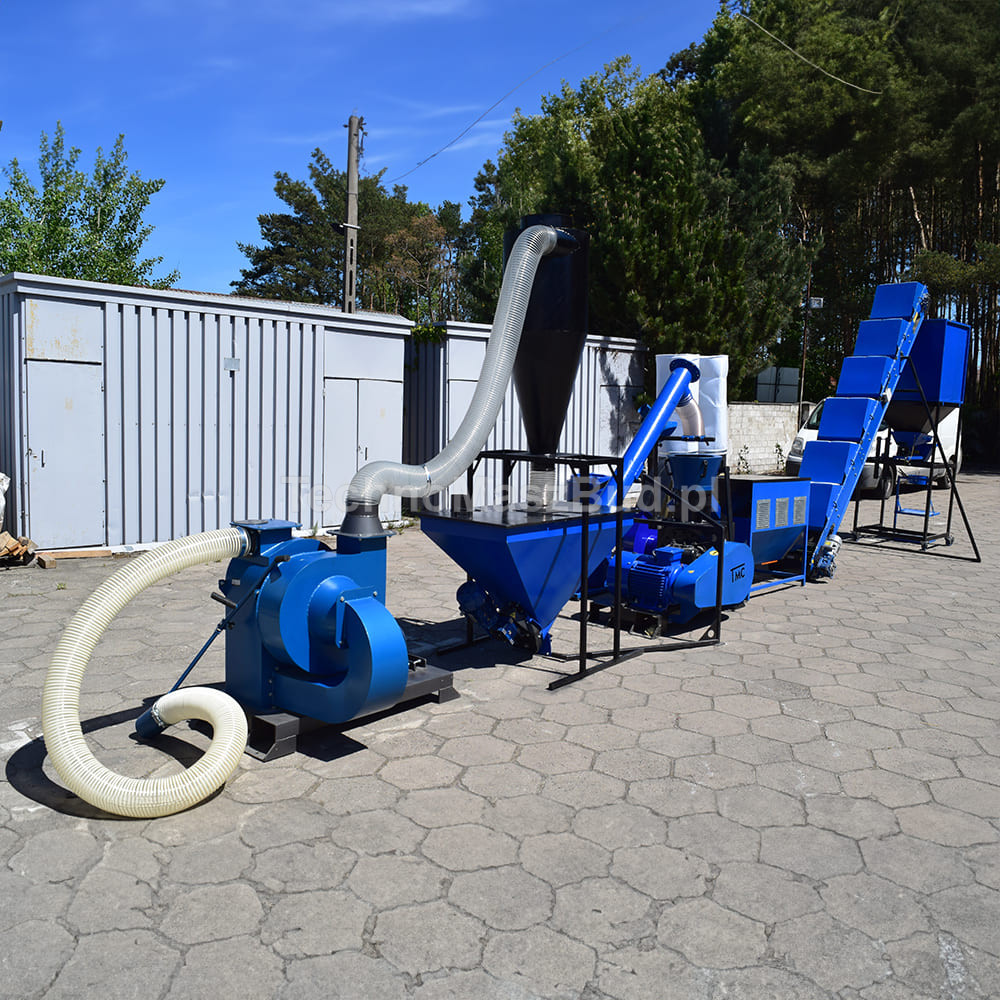

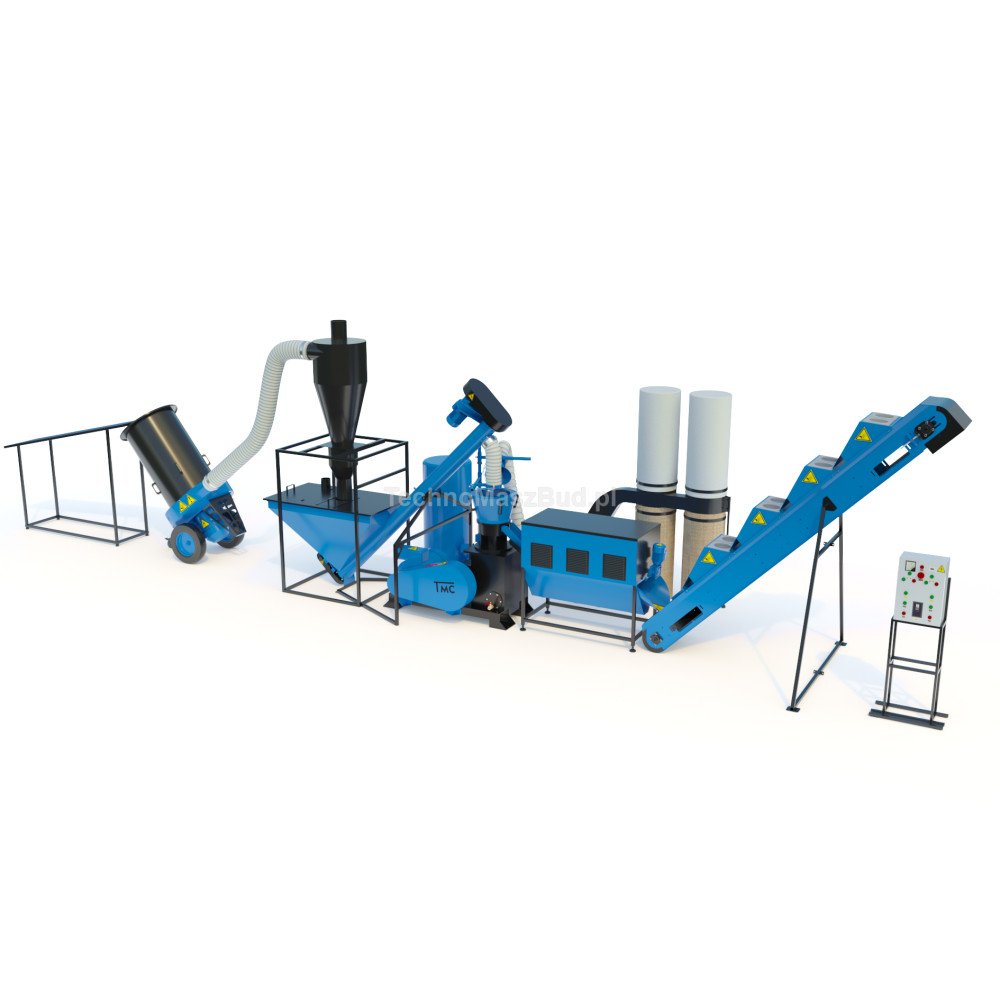

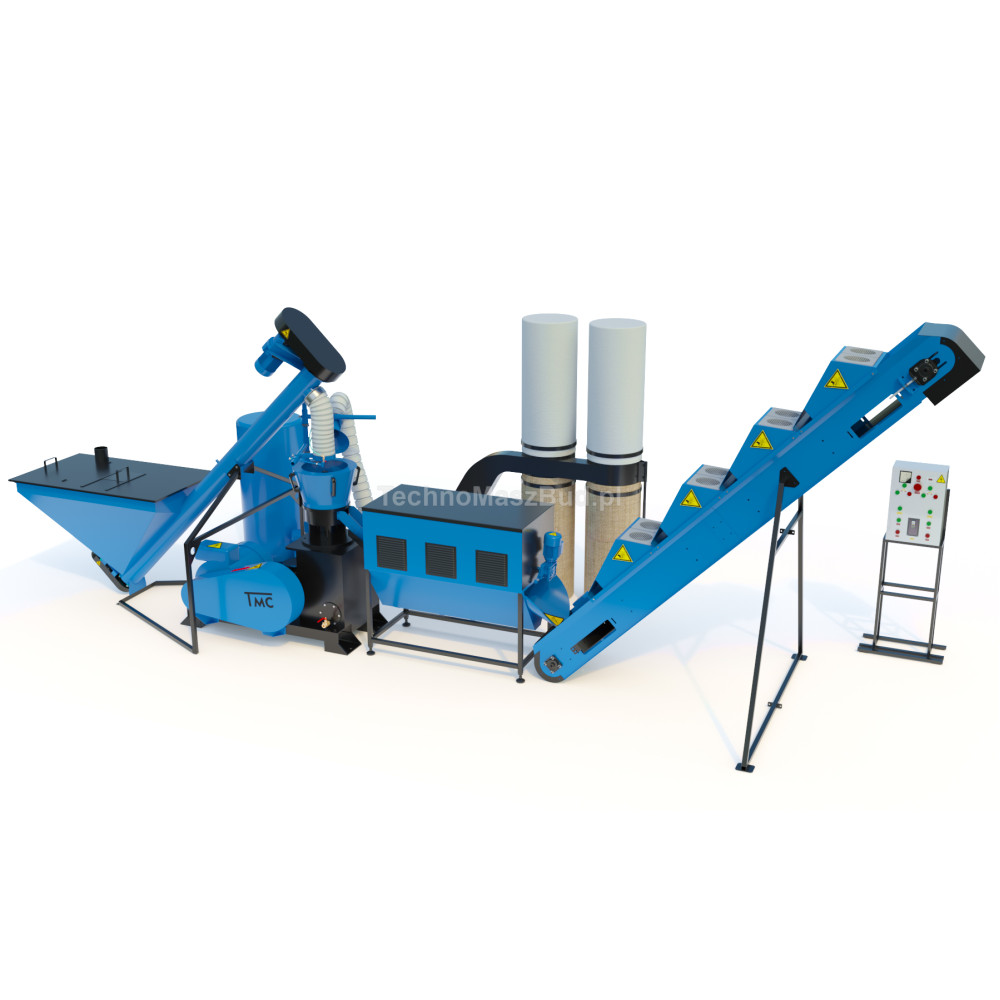

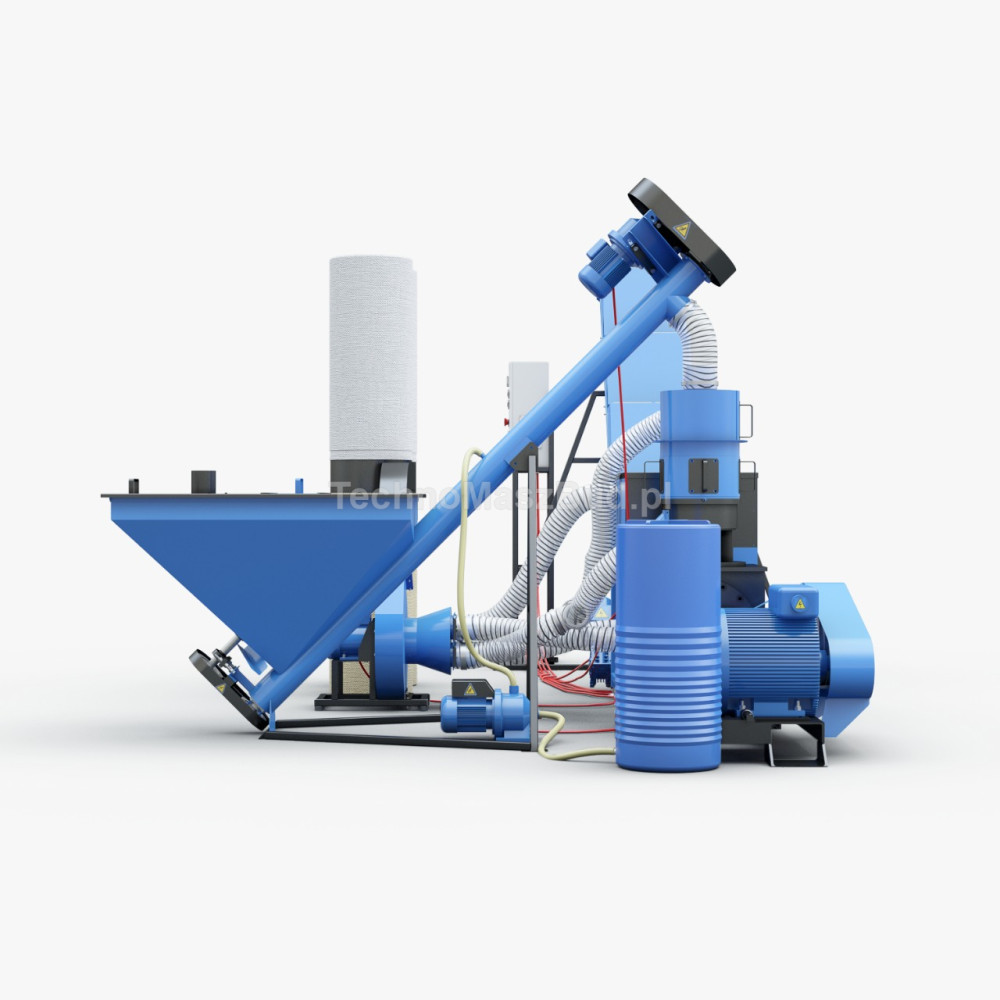

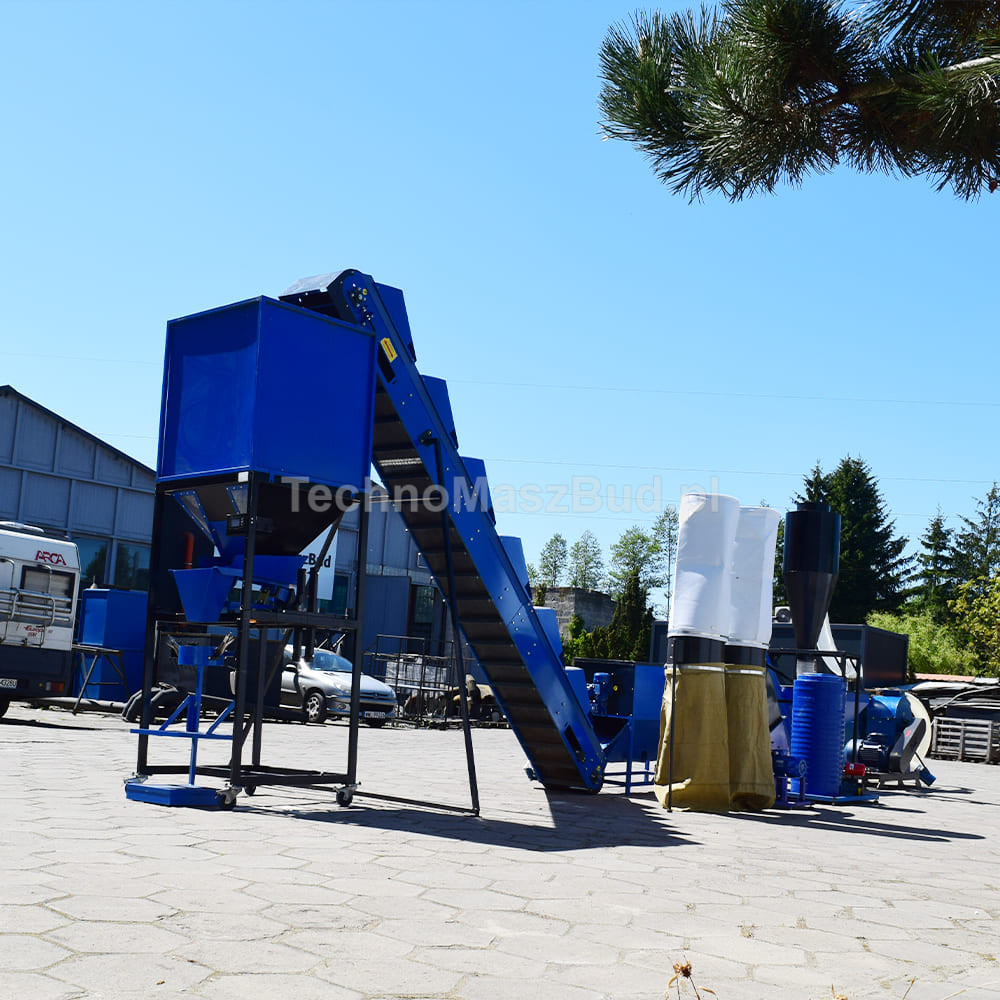

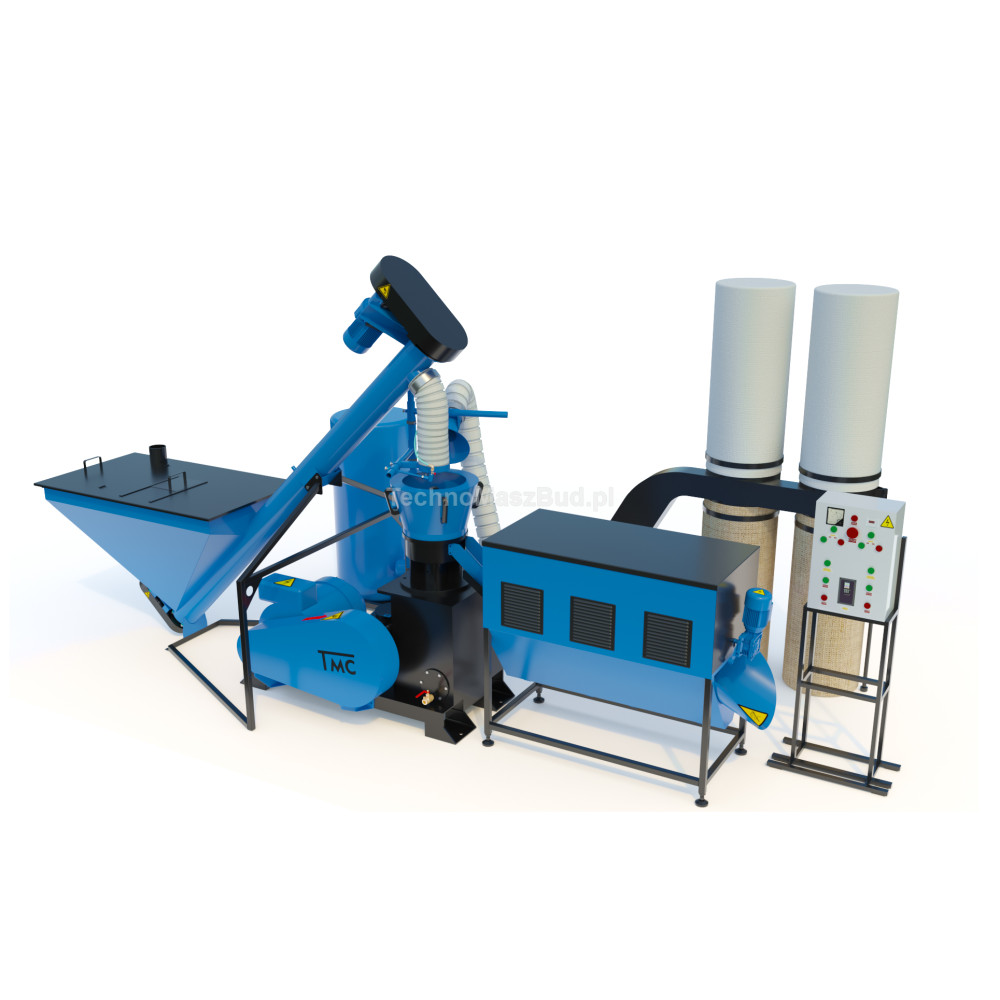

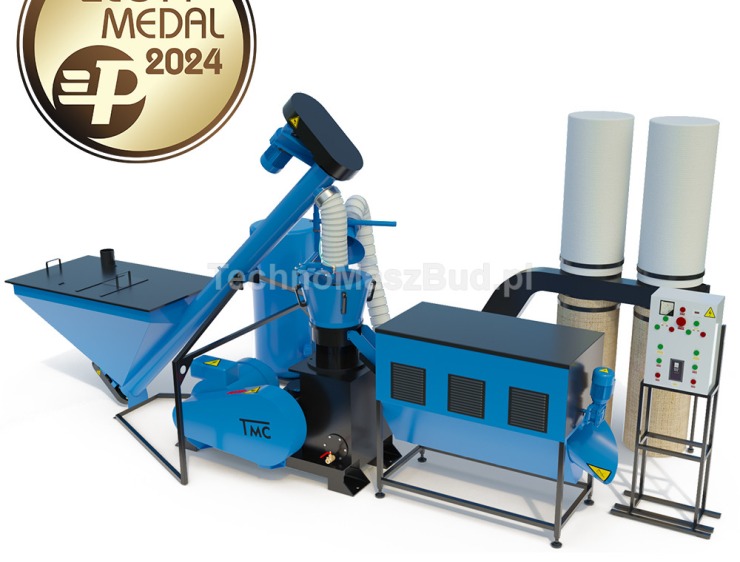

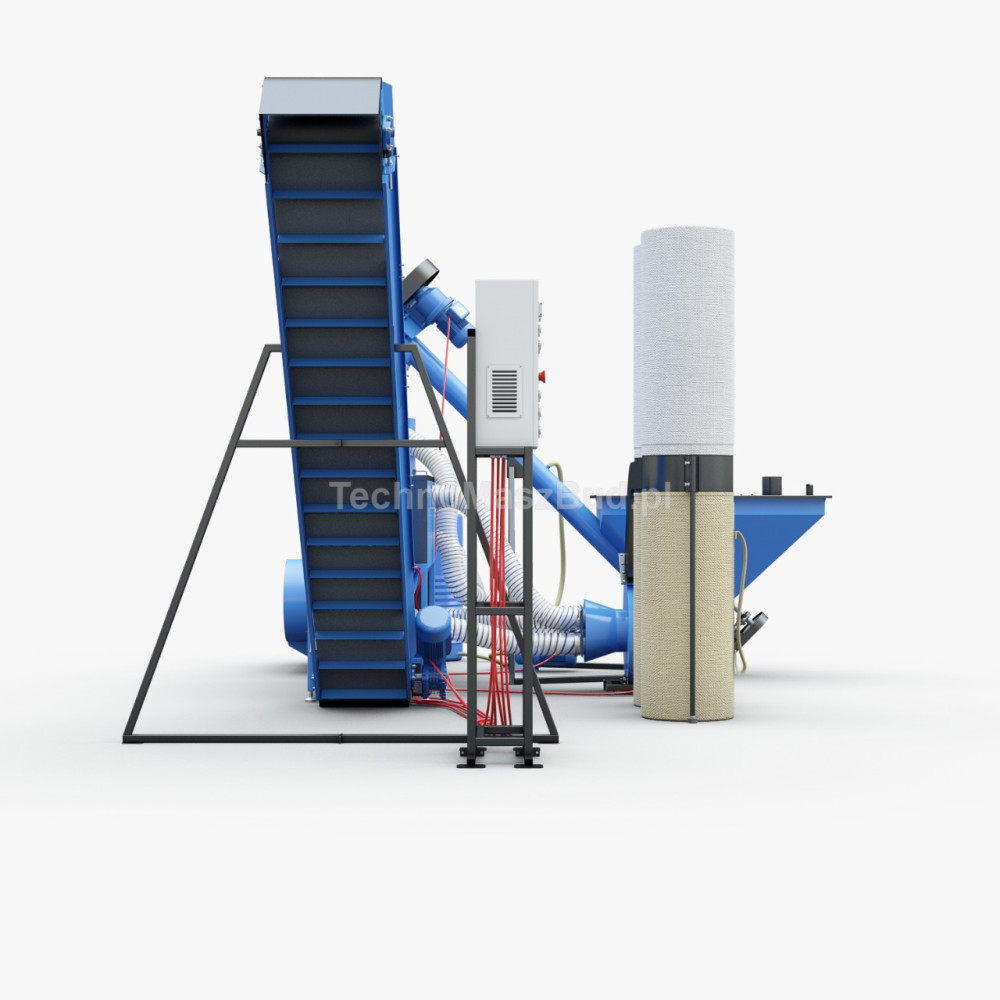

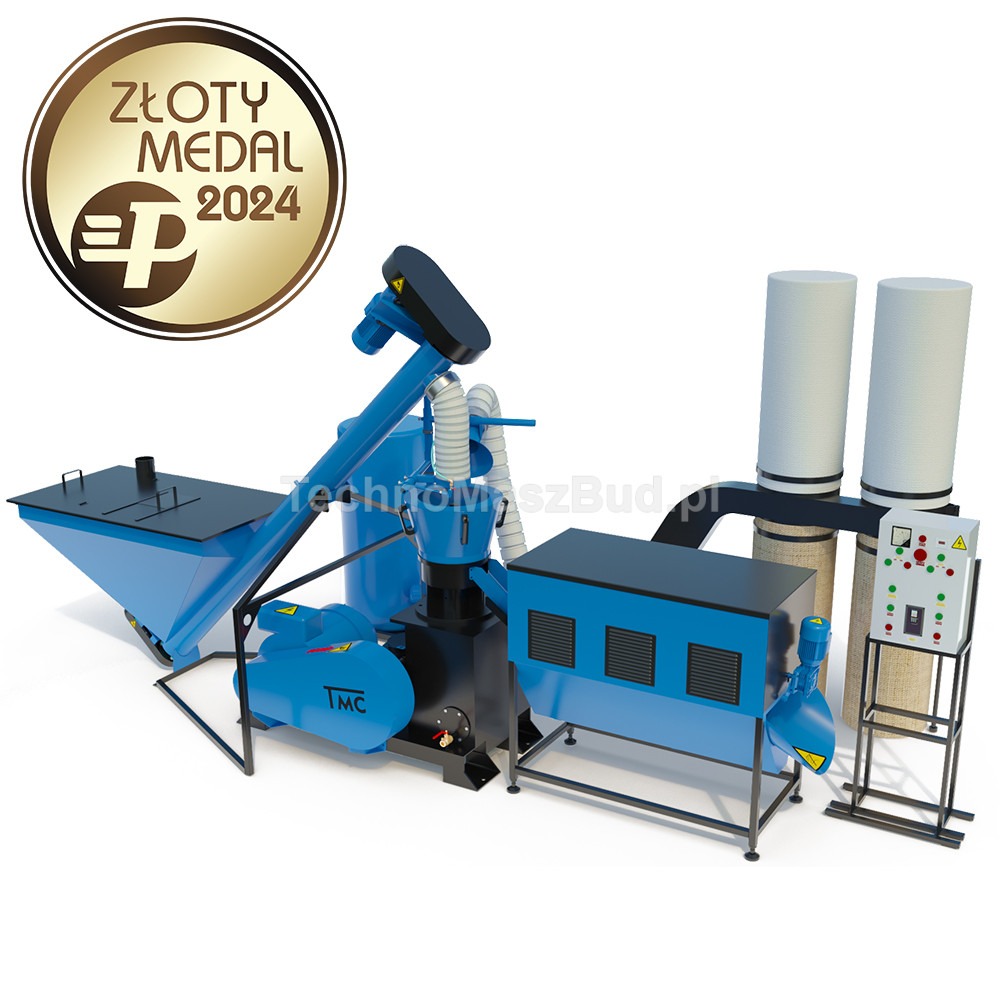

The line includes:
1. Screw Feeder PS-200 (1.5 kW) – with smooth feed rate adjustment via frequency inverter.
2. Moisturizing system (0.37 kW) – valve, pump, 100-liter water tank, nozzle; the system is connected to a stand above the working area, allowing you to add the required, measured amount of moisture during granulation.
3. PRIME-300 Pelleting Machine – suitable motors can be installed for different types of raw materials: for feed – 30 kW, for pellets – 22 kW.
4. Granule/Pellet Calibrator-Cooler KC-100 (0.12 kW) – provides additional product cooling and removes dust and crumbs with a special drum.
5. Closed Extraction System SO-2 (1.5 kW) – this device uses a fan to provide the airflow necessary to cool the pellets and collect calibrated raw material remnants and dust into containers (bags mounted on the device).
6. Control panel – intuitive operation, facilitating work. Small size and built-in automation cooling system make the control panel reliable and convenient to install near the production line. The panel includes an ammeter and thermal protection for each motor in the line
Width: 250.0(cm)
Height: 230.0(cm)
Weight: 1050.0(kg)
