| Make: | TechnoMaszBud |
| Model: | LDG-3000 (DUO) |
| Power: | 96 kW |

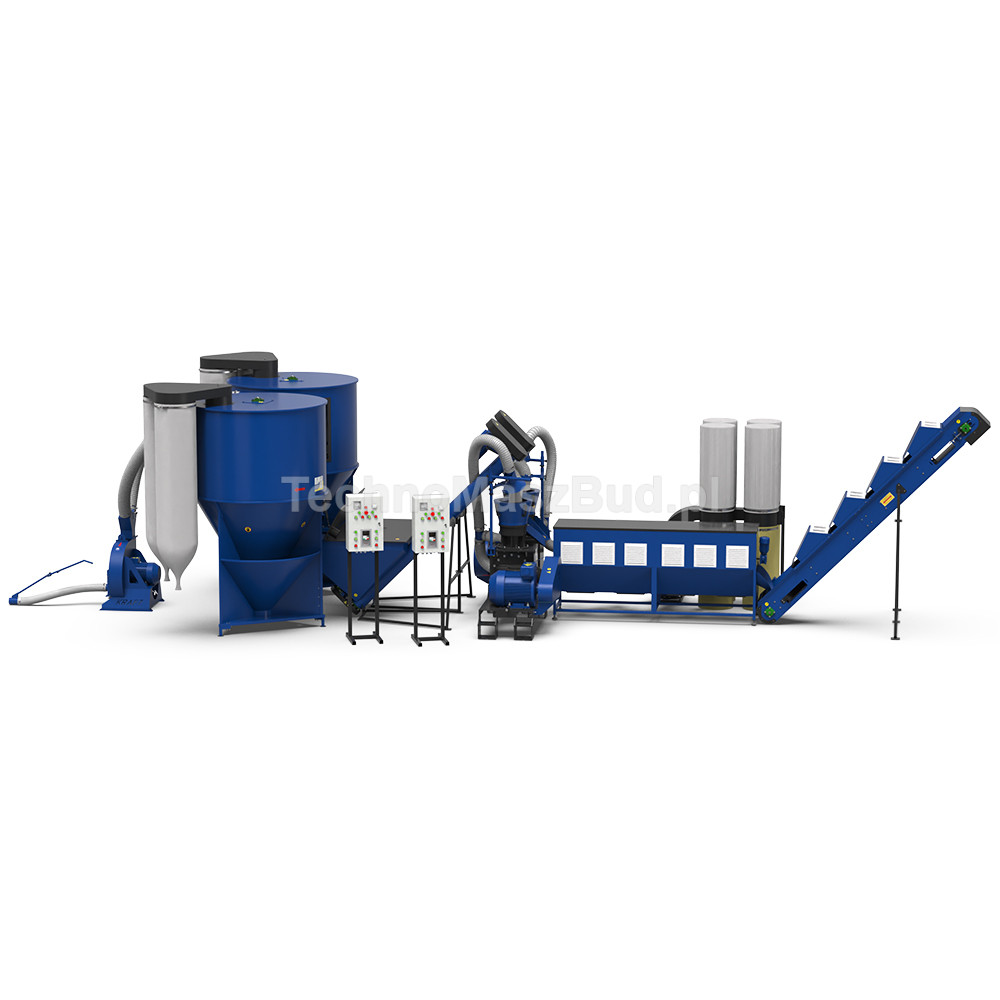

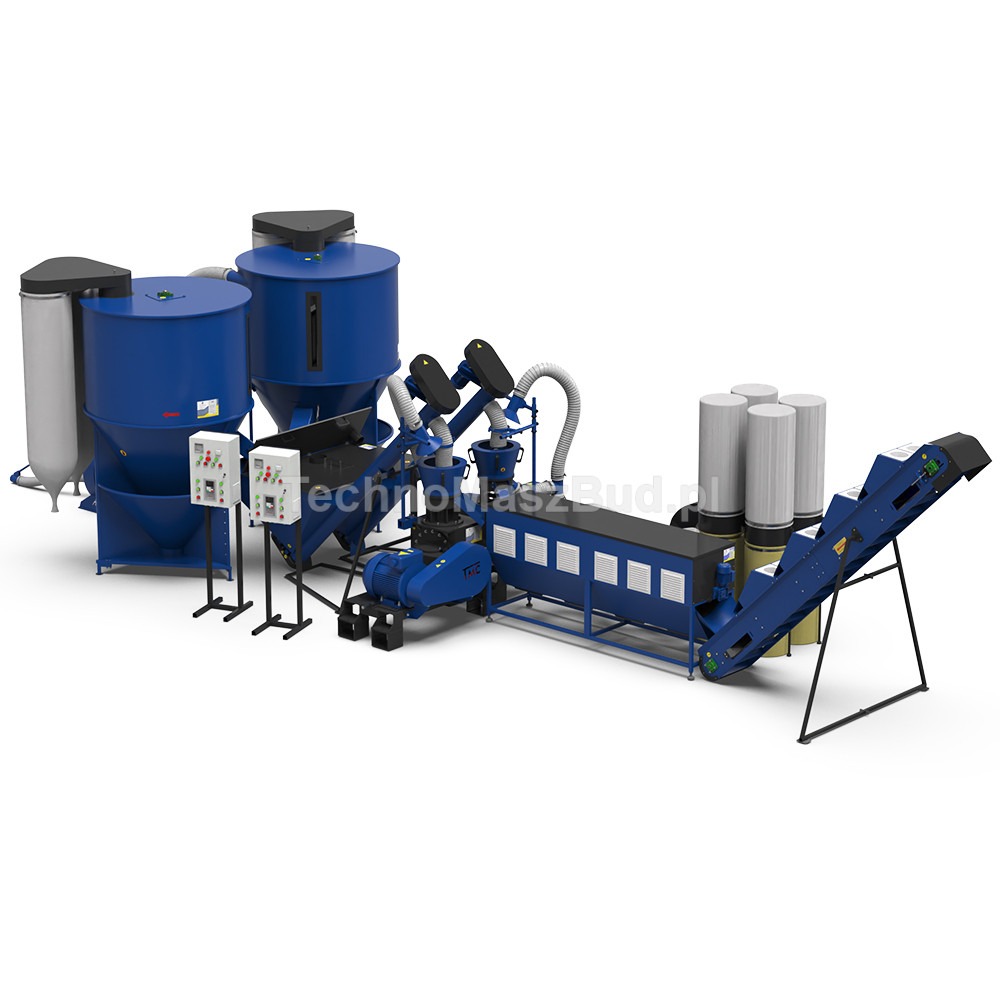

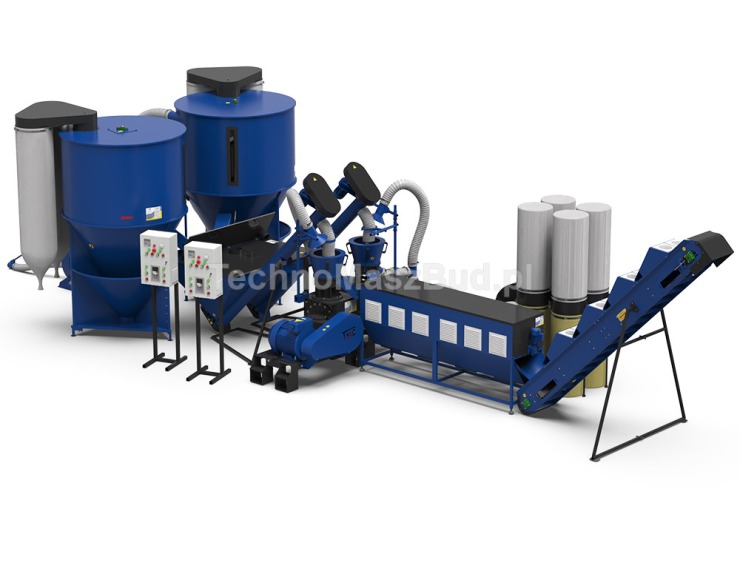

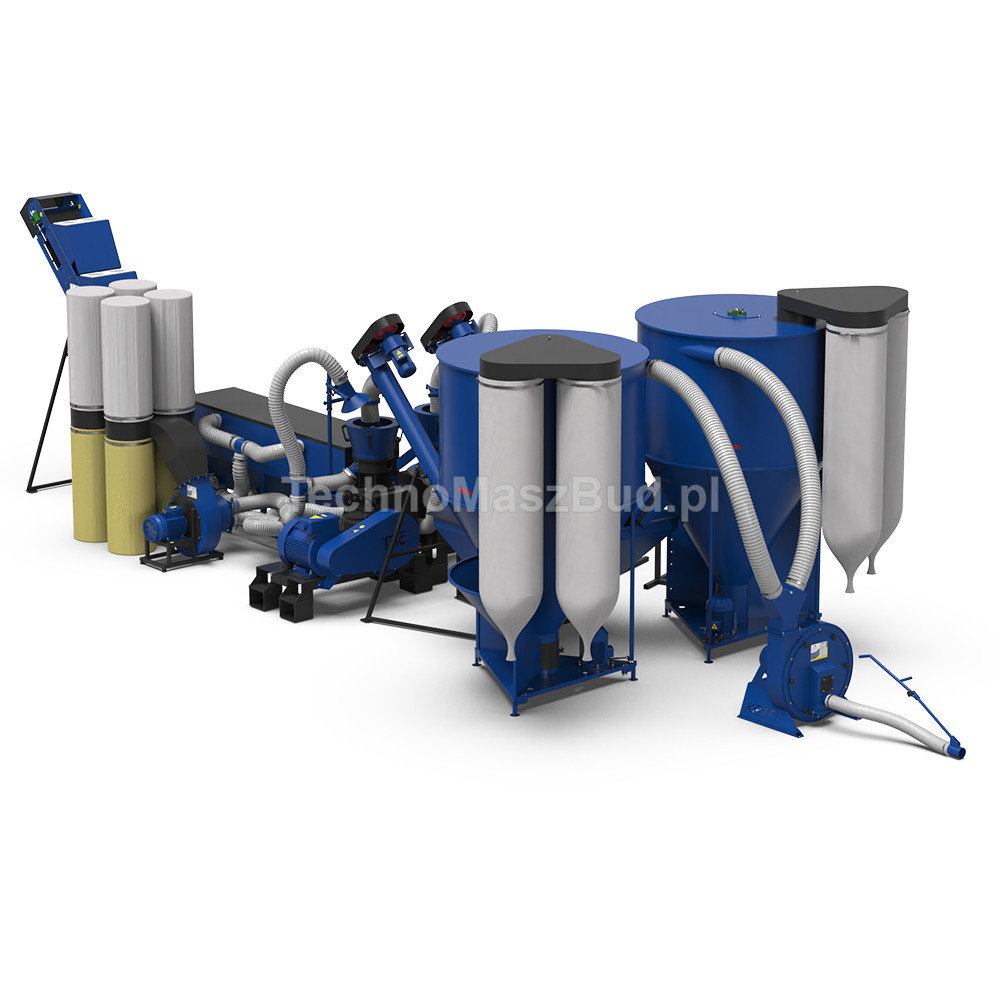

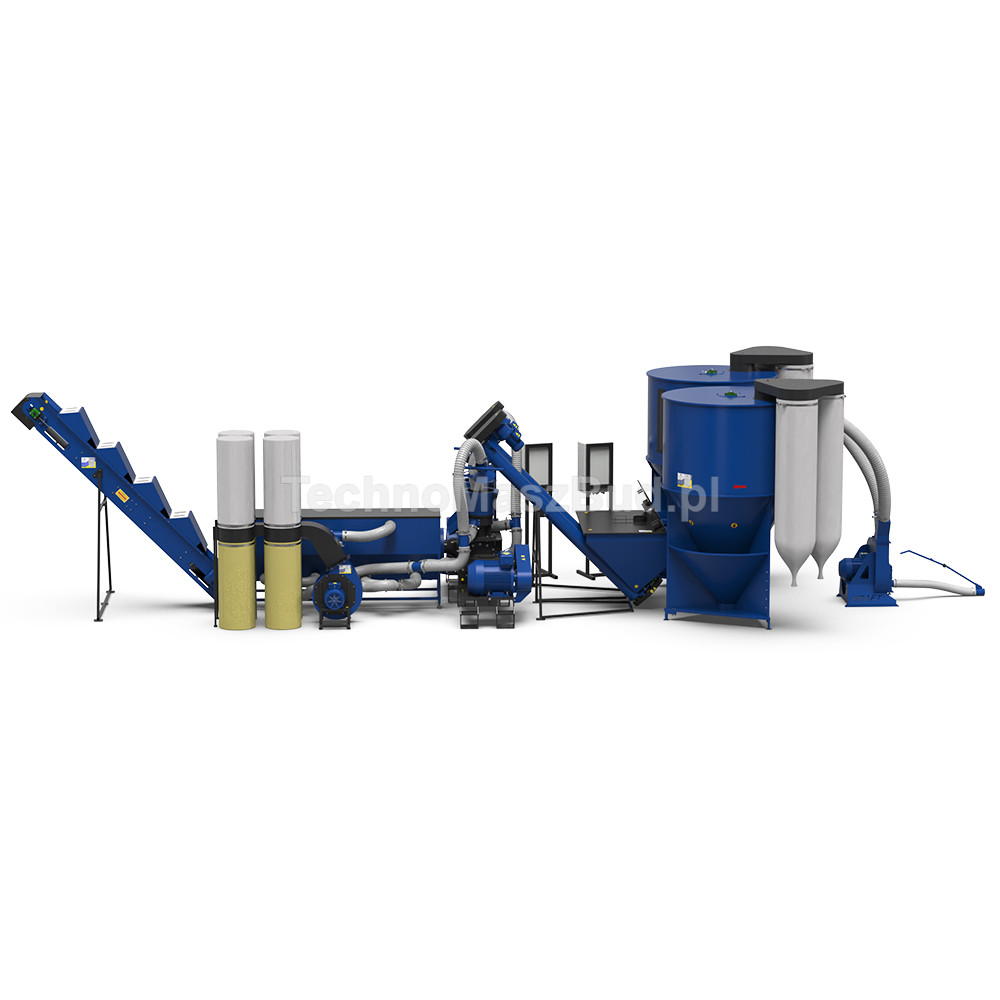

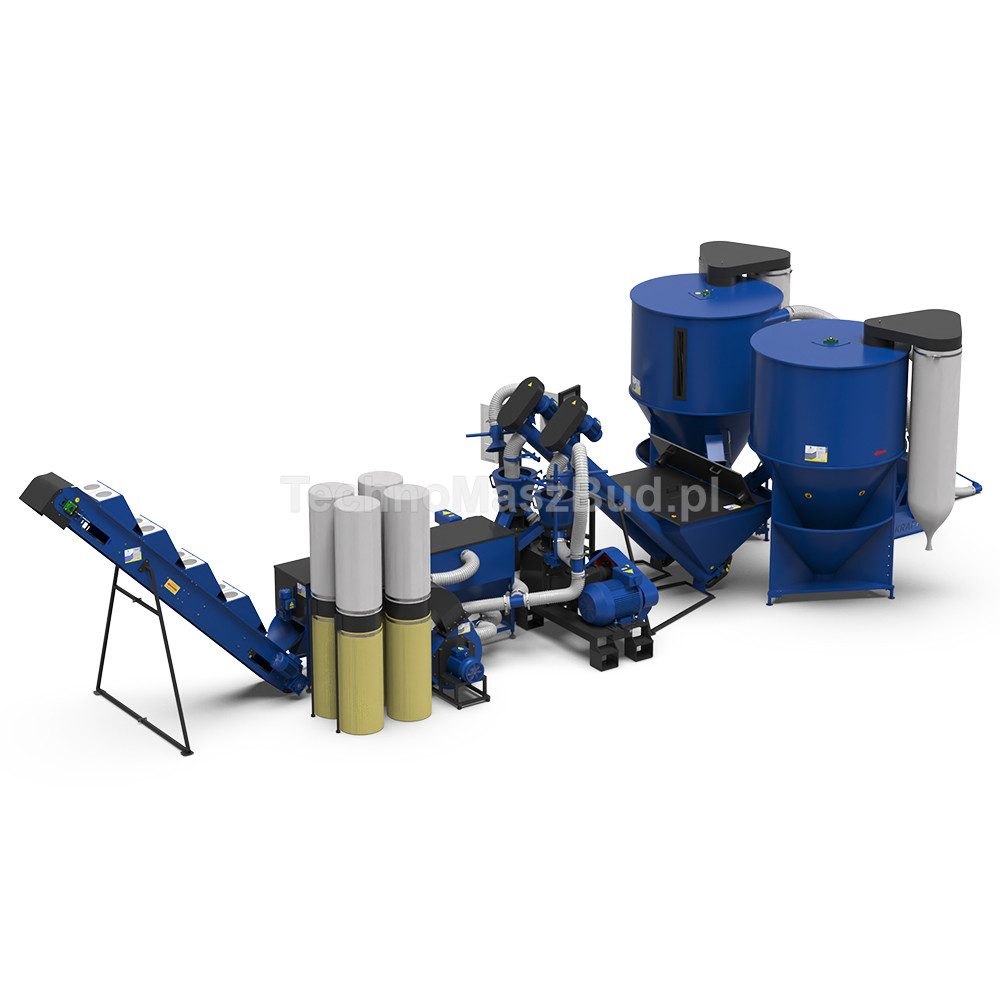

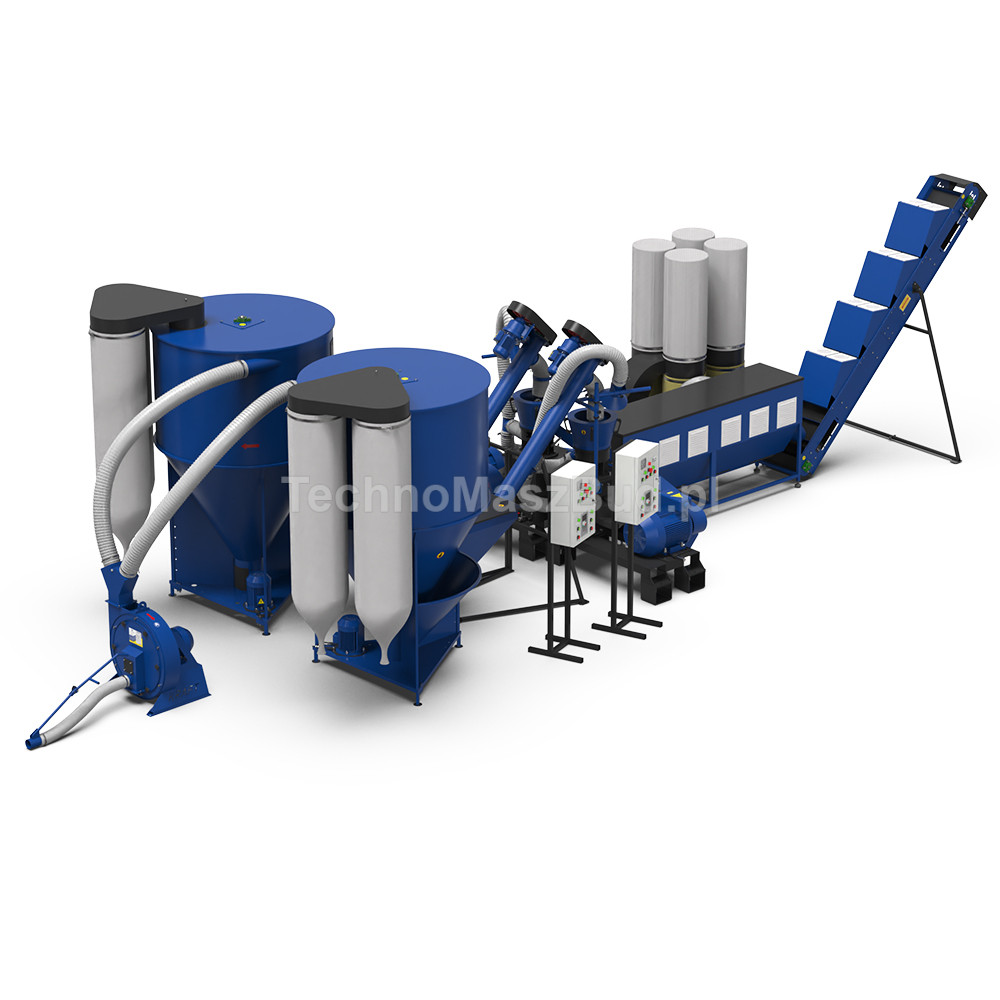

Feed Granulation Line LDG-3000 DUO is an advanced solution designed for the production of high-quality feed pellets. Thanks to the use of two PRIME-300 pelletizers, the line achieves a capacity of up to 1400 kg/h for granulated feeds. Each pelletizer is equipped with a 30 kW motor and a 300 mm diameter die, ensuring efficient processing of various types of raw materials. In addition, the line is equipped with a humidification system, a calibrator-cooler, and a closed extraction system, guaranteeing high quality of the final product.
The technological process of granulated feed production is as follows: first, using the KRAFT hammer mill, the ground raw material is simultaneously delivered to two MP-2000 feed mixers. After mixing in the mixers, the mixture is fed to the pelletizers using the PS-200 DUO screw feeder. As the raw material moves to the pelletizer, it falls under the rollers and is forced through the holes of the die. At the exit, feed granulate is received, which is supplied to the KC-200 for preliminary cooling and final calibration. After KC-200, the granulate falls onto the PT-1000 conveyor belt with fans for additional cooling.
Main advantages of the LDG-3000 DUO feed granulation line:
High efficiency: Thanks to two PRIME-300 pelletizers, the line achieves capacity up to 1400 kg/h for granulated feeds.
Raw material flexibility: Ability to process various raw materials, such as sawdust, straw, grain cleaning waste or feed.
Process automation: Use of humidification system, calibrator-cooler, and closed extraction system ensures high product quality and production continuity.
Reliability: High-quality components and robust construction guarantee long-term and trouble-free operation.
LDG-3000 DUO Line Configurations
LDG-3000 DUO pellet line is available in various configurations tailored to individual production needs. Offered options include additional conveyor belts, shredders, aerodynamic dryers, and calibrators, allowing full automation of pellet and feed granule production processes.
High efficiency: Thanks to two PRIME-300 pelletizers, the line achieves capacity up to 1400 kg/h for granulated feeds.
Raw material flexibility: Ability to process various raw materials, such as sawdust, straw, grain cleaning waste or feed.
Process automation: Use of humidification system, calibrator-cooler, and closed extraction system ensures high product quality and production continuity.
Reliability: High-quality components and robust construction guarantee long-term and trouble-free operation.
LDG-3000 DUO Line Configurations
LDG-3000 DUO pellet line is available in various configurations tailored to individual production needs. Offered options include additional conveyor belts, shredders, aerodynamic dryers, and calibrators, allowing full automation of pellet and feed granule production processes.
Length: 12100(mm)
Width: 3800(mm)
Height: 3150(mm)
Weight: 2800.0(kg)
Width: 3800(mm)
Height: 3150(mm)
Weight: 2800.0(kg)
