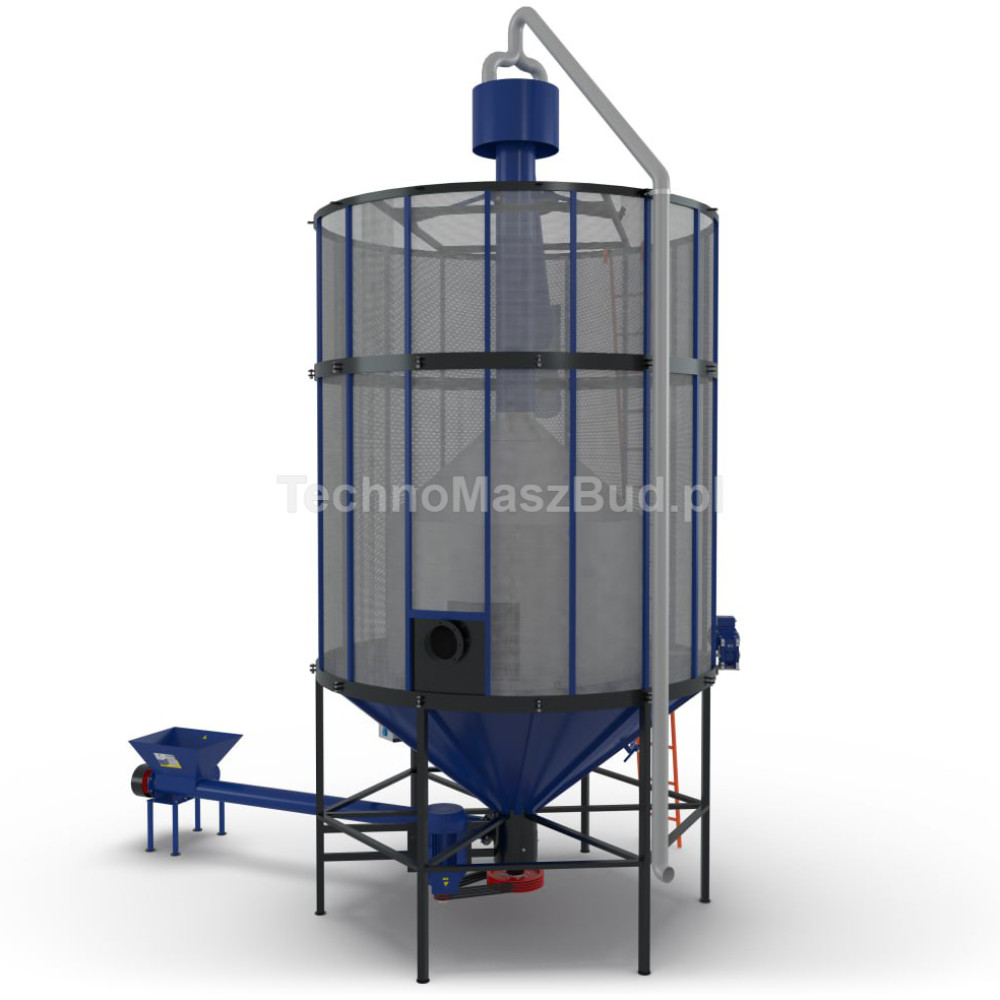

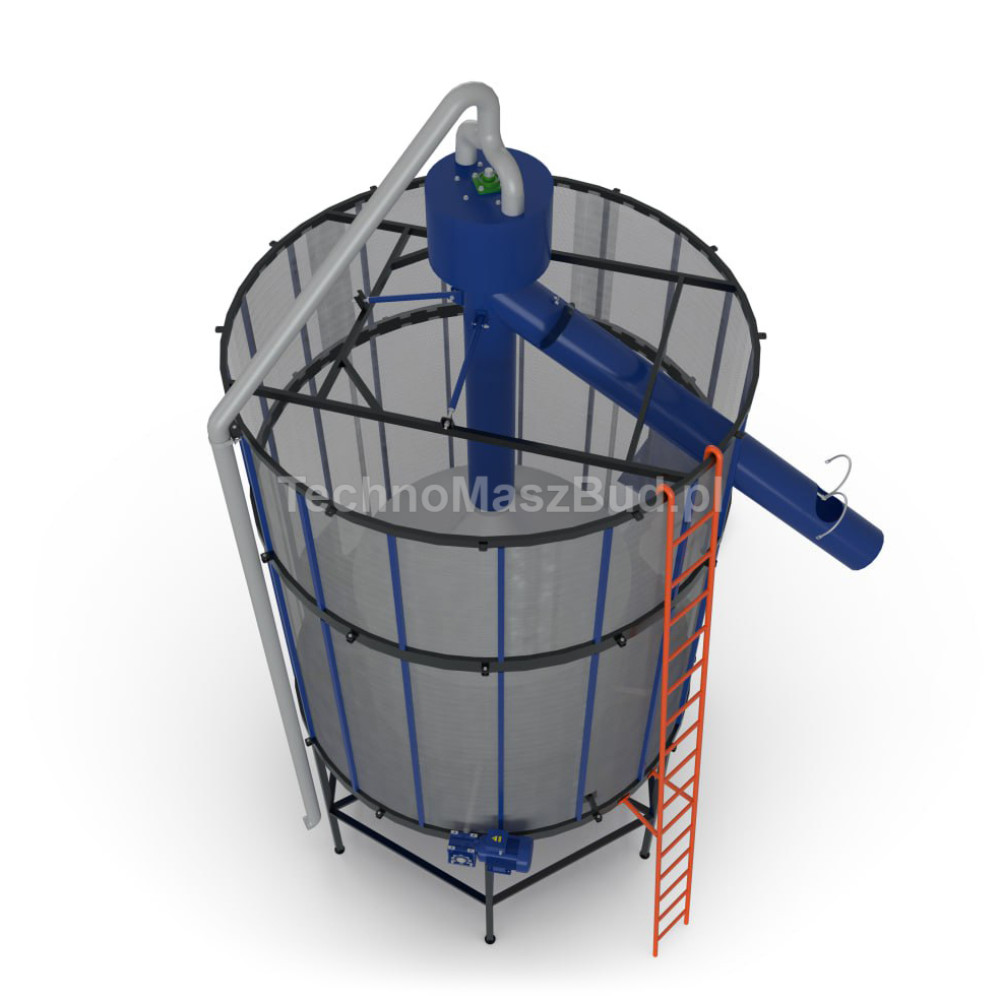

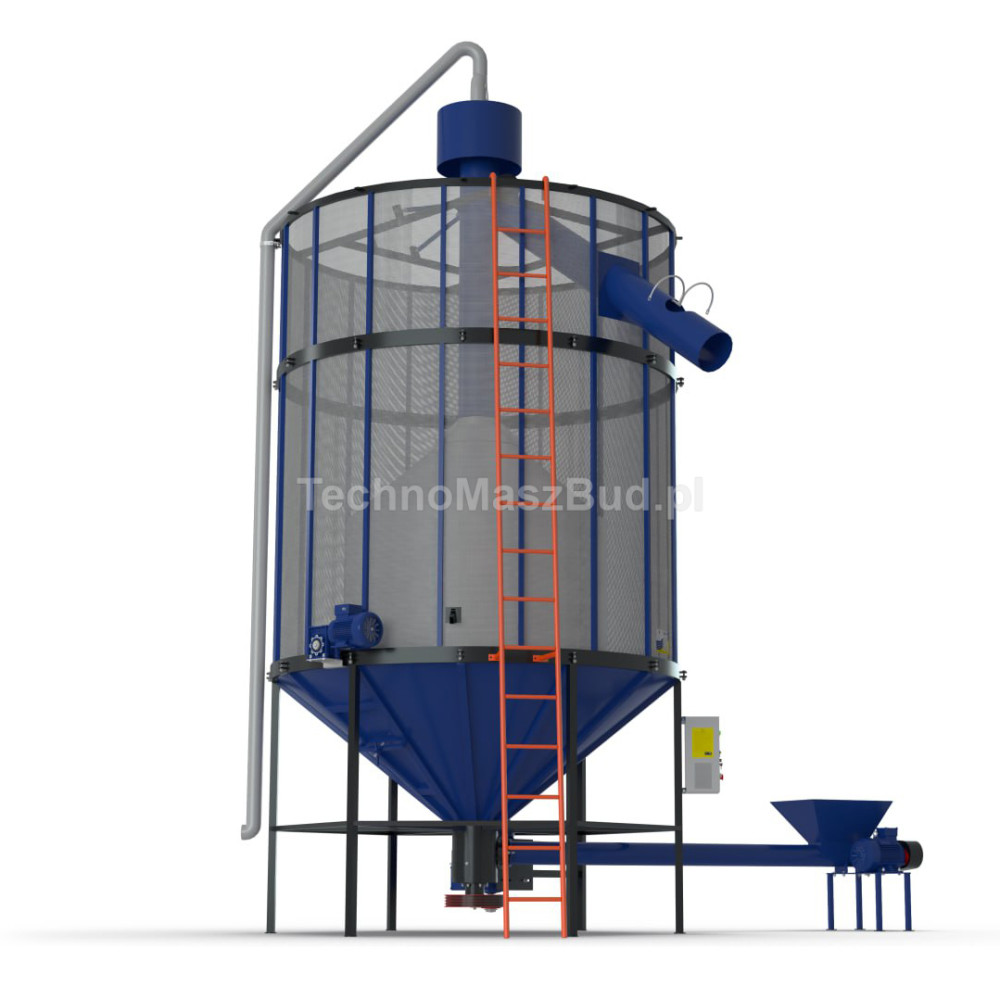

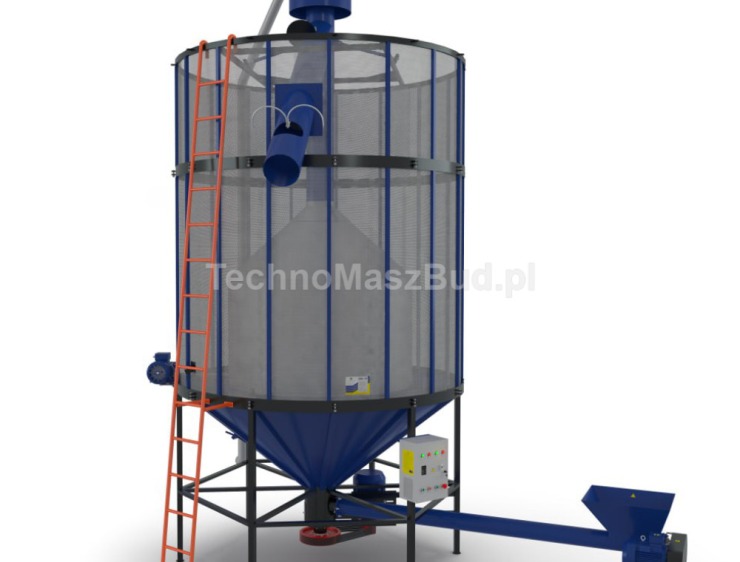

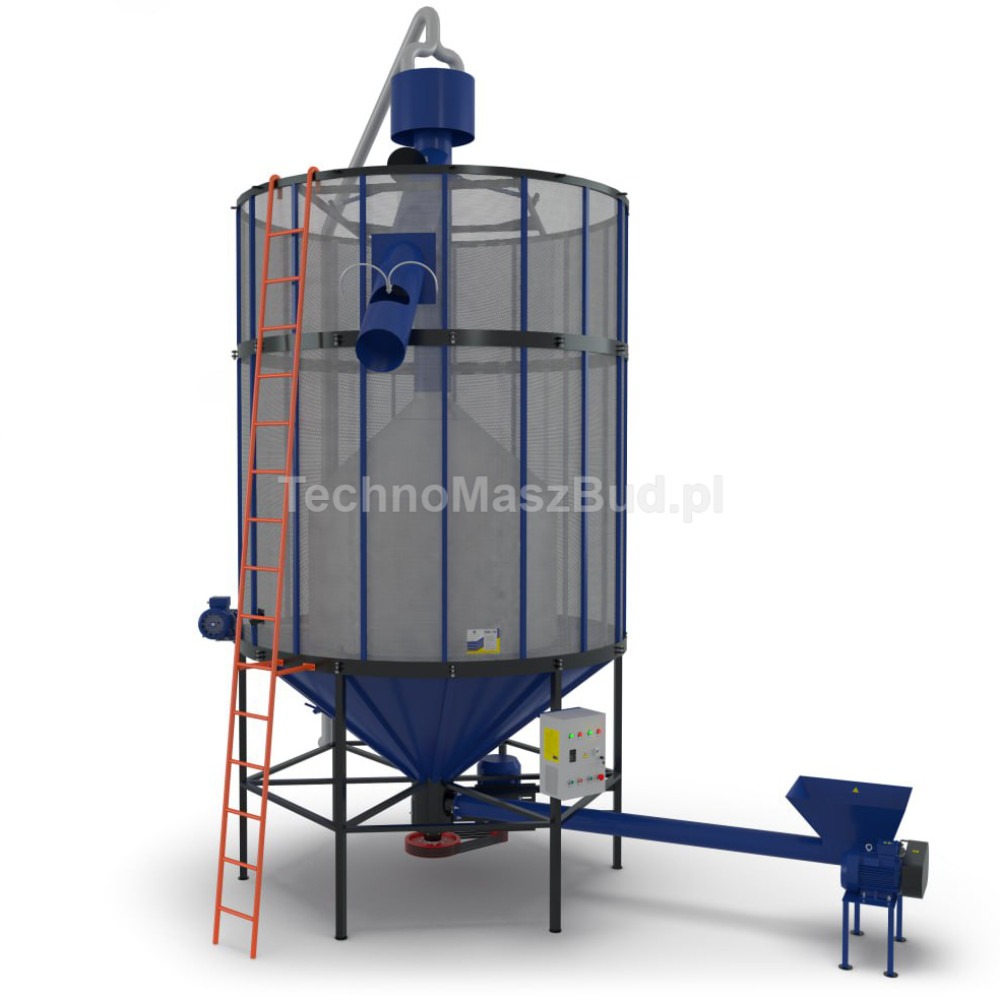

Mobile grain dryer MS-18
- Home
- New Machinery
- Farming Equipment
- Grain handling equipment
- Grain dryers
- Mobile grain dryer MS-18
| Make: | TechnoMaszBud |
| Model: | MS-18 |
Key advantages of the MS-18 mobile dryer
- Simple, reliable design with a separate drive for each mechanism
- Central auger placement and convenient access to all components
- Versions with a heat exchanger or direct-fired air
- Mobility — no need to build additional infrastructure
- Compatible with any cleaning systems and silos
- Operates on various fuels: gas, diesel fuel, wood pellets
- Full control over the moisture and cleanliness of the dried grain
Benefits for the user
- No costs for transporting grain to an elevator and storing it in external warehouses
- Ability to set the moisture level yourself and control grain quality
- Sell at a favorable market moment — without the risk of quality deterioration during storage
- Time savings — no need to wait in queues at collection points
Applications
MS-18 is a device designed for drying grain on farms. The different heat source options for the MS-18 dryer make this machine suitable for any working conditions — wherever clean, loss-free storage of grain is required.
The usable capacity of the grain dryer is 17.8 m³
(at a bulk grain density of 700 kg/m³, the dryer is designed for 12.5 t of grain).
Technical specifications:
- Fan motor power: 7.5 kW
- Loading auger motor power: 3 kW
- Vertical auger motor power: 7.5 kW
- Mixer drive motor power: 2.2 kW
- Total power: 20.2 kW
Performance on wheat:
- Moisture reduction from 20% to 14% — 4 t/h
Performance on corn:
- Moisture reduction from 20% to 14% — 4 t/h
- Moisture reduction from 25% to 14% — 3 t/h
- Moisture reduction from 30% to 14% — 2 t/h
Performance on sunflower:
- Moisture reduction from 14% to 8% — 2 t/h
* Performance depends on many factors, including: ambient temperature and humidity, atmospheric pressure, grain maturity and contamination, fuel calorific value and quality, and the operating temperature of the drying medium. The data provided refer to conditions: ambient temperature +20°C, relative air humidity 60%, atmospheric pressure 99.1 kPa.
Length: 4900 mm
Width: 3700 mm
Height: 6300 mm
The source of heating air: gas, diesel oil, heating pellets.
Usage for drying grain.
Production capacity: moisture removal from 20% to 14%: 4T per hour.
Engine power - 20.2 kW.
