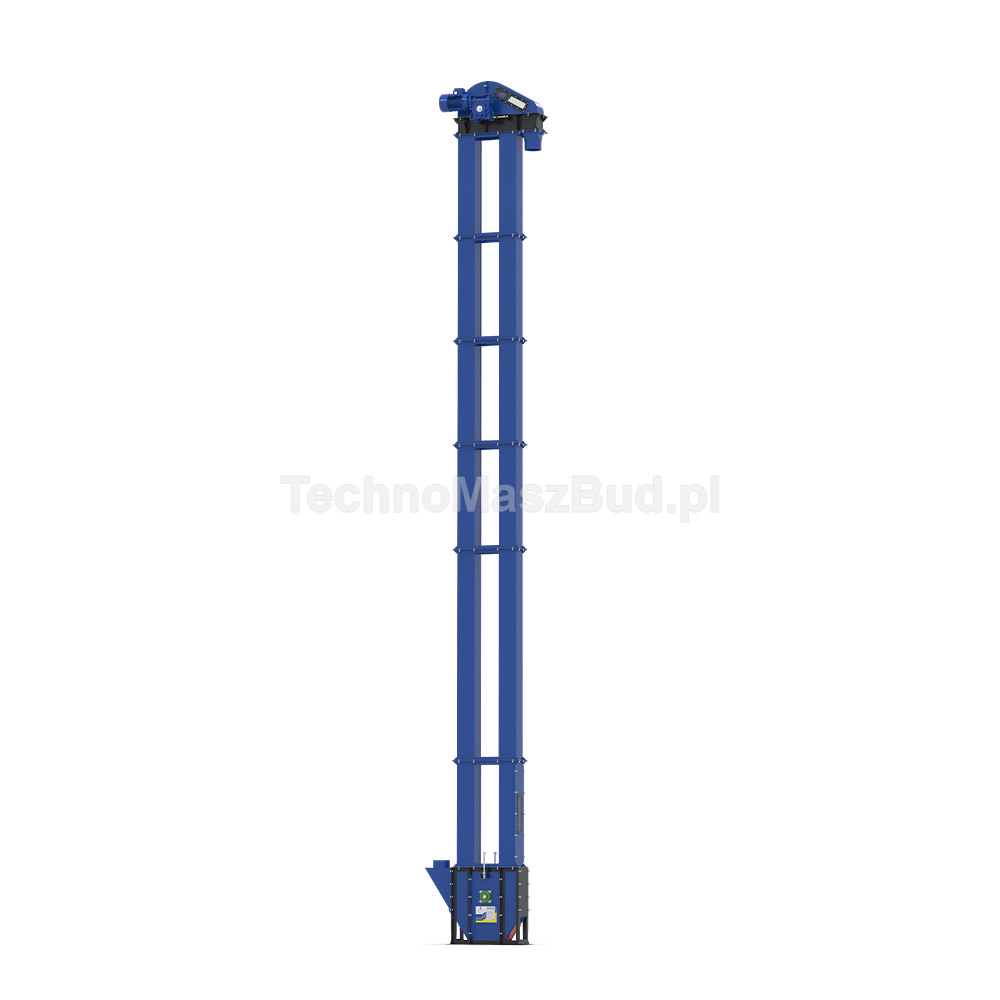

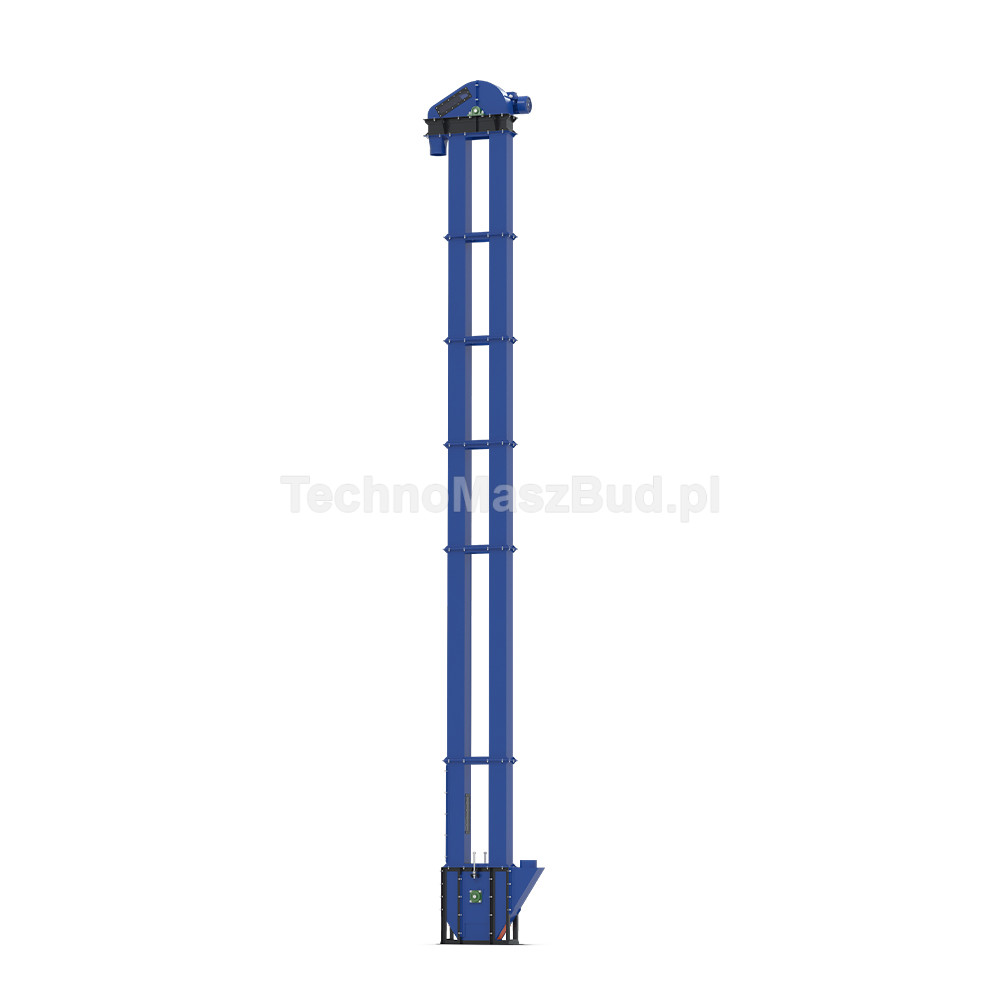

Bucket Elevator PK-750

Description

PK-750 Bucket Elevator is a specialized machine for the vertical transport of grains and bulk materials produced during their processing — such as pellets, meal, or feed. Thanks to a reliable bucket mechanism, it enables continuous and efficient operation in automated systems.

Applications:

• grain elevators,
• cleaning and drying lines,
• milling and feed plants,
• grain collection points,
• grain warehouses and silos.

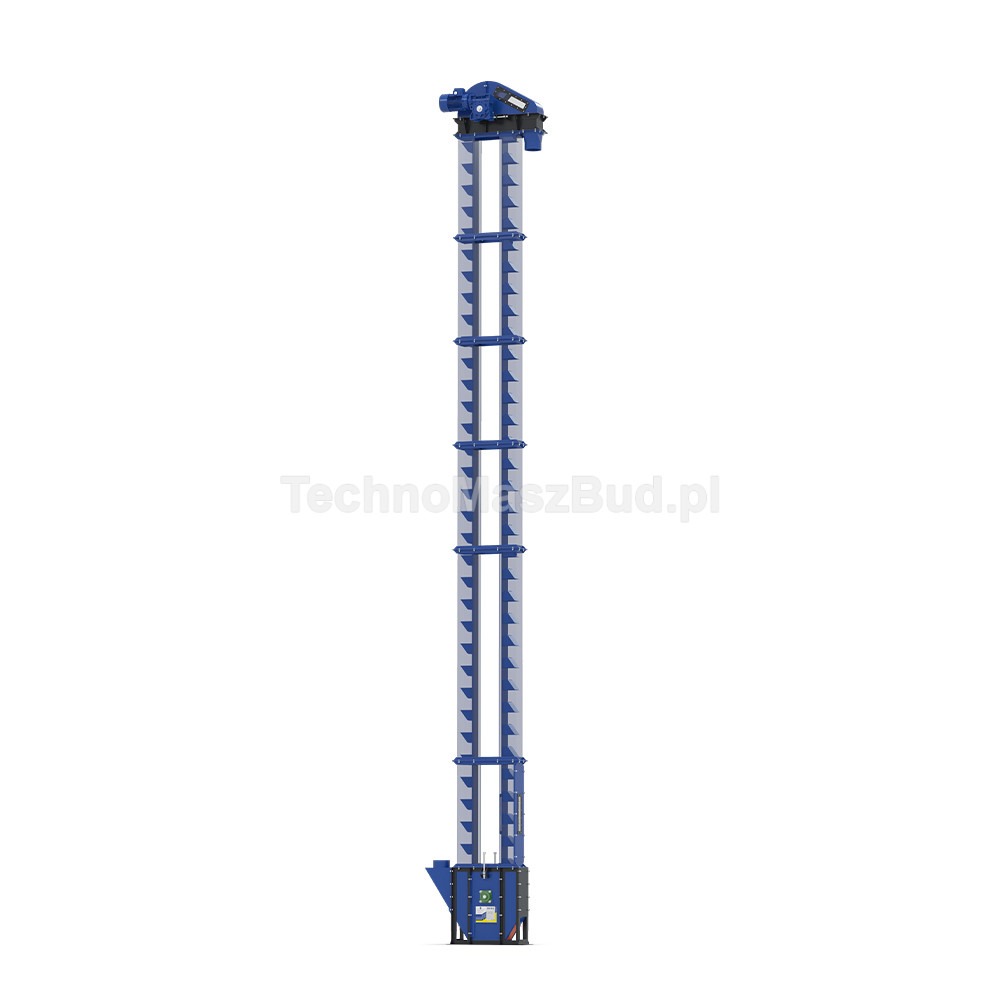

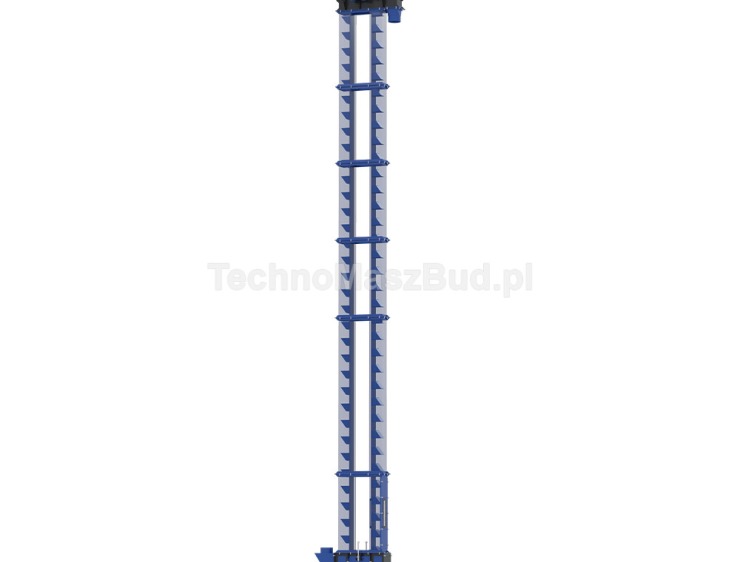

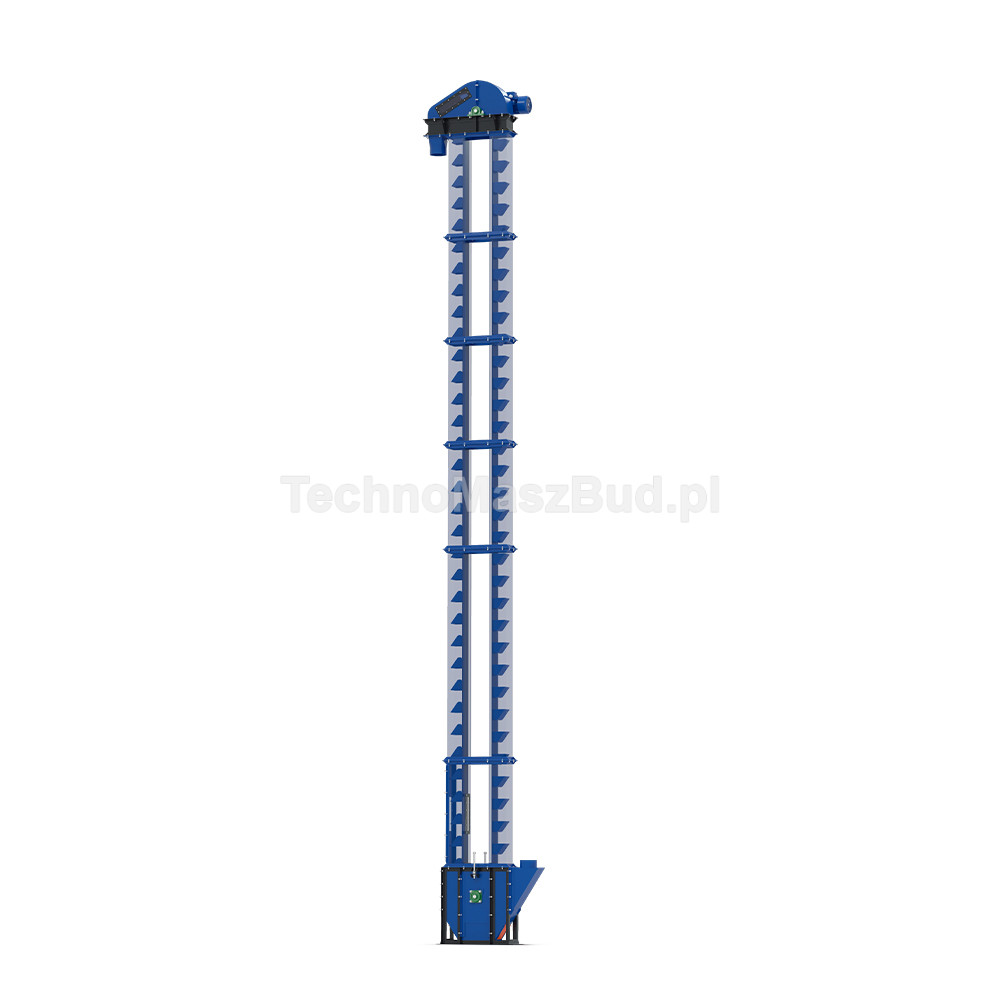

The unit is based on a belt drive with mounted buckets, ensuring energy efficiency and reliable operation. It is designed to comply with modern safety and environmental standards. Thanks to its simple design, maintenance is quick and hassle-free.

Technical data:

• Capacity:up to 10 t/h (for wheat)
• Motor power:2.2 kW, 220–230 V or 380–400 V
• Drive drum speed:124 rpm
• Belt speed:2 m/s
• Bucket spacing:204 mm
• Bucket dimensions:125 × 110 mm
• Bucket capacity:0.68 l
• Number of buckets:77 pcs.
• Drive drum diameter:294 mm
• Belt dimensions:150 × 4 mm (width × thickness)
• Head dimensions:963 × 427 × 685 mm
• Base dimensions (without hopper):780 × 256 × 720 mm

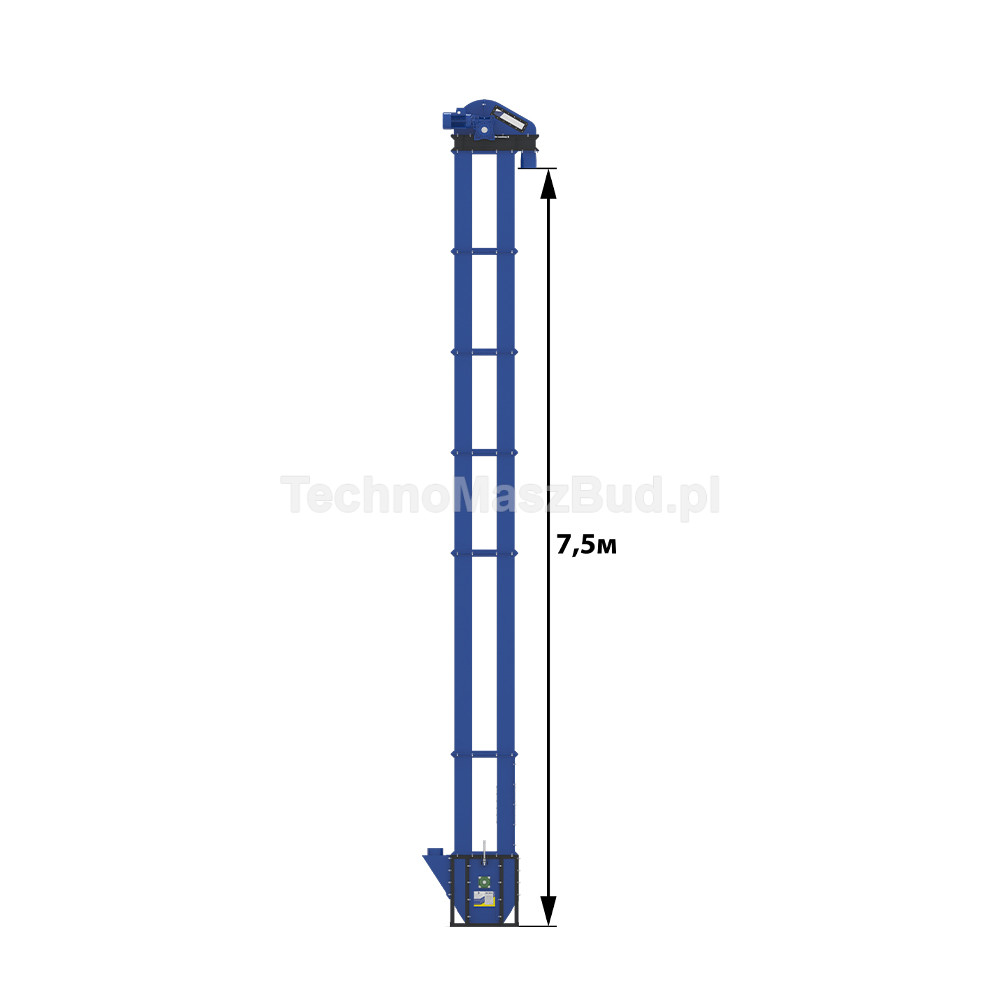

• Overall height:7.5 m
• Bucket material:high-density polyethylene (buckets can also be made from other materials, including stainless steel)
