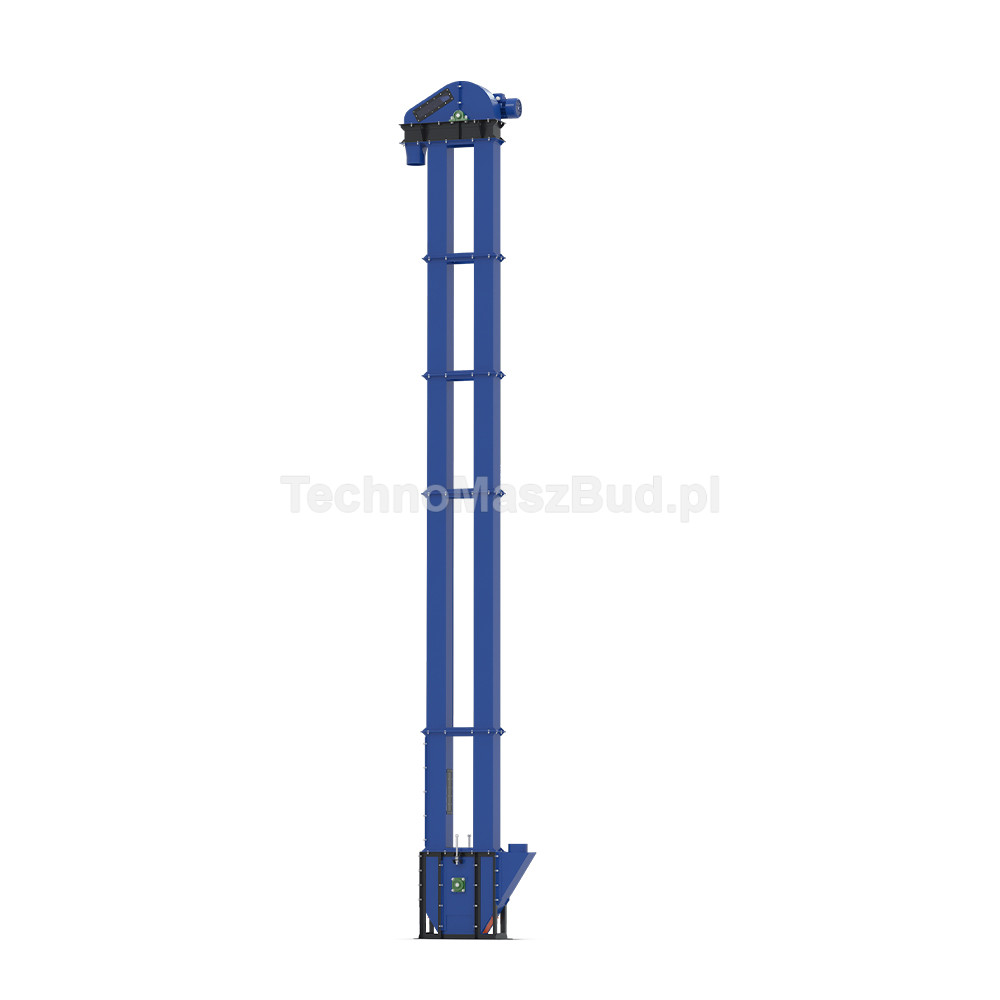

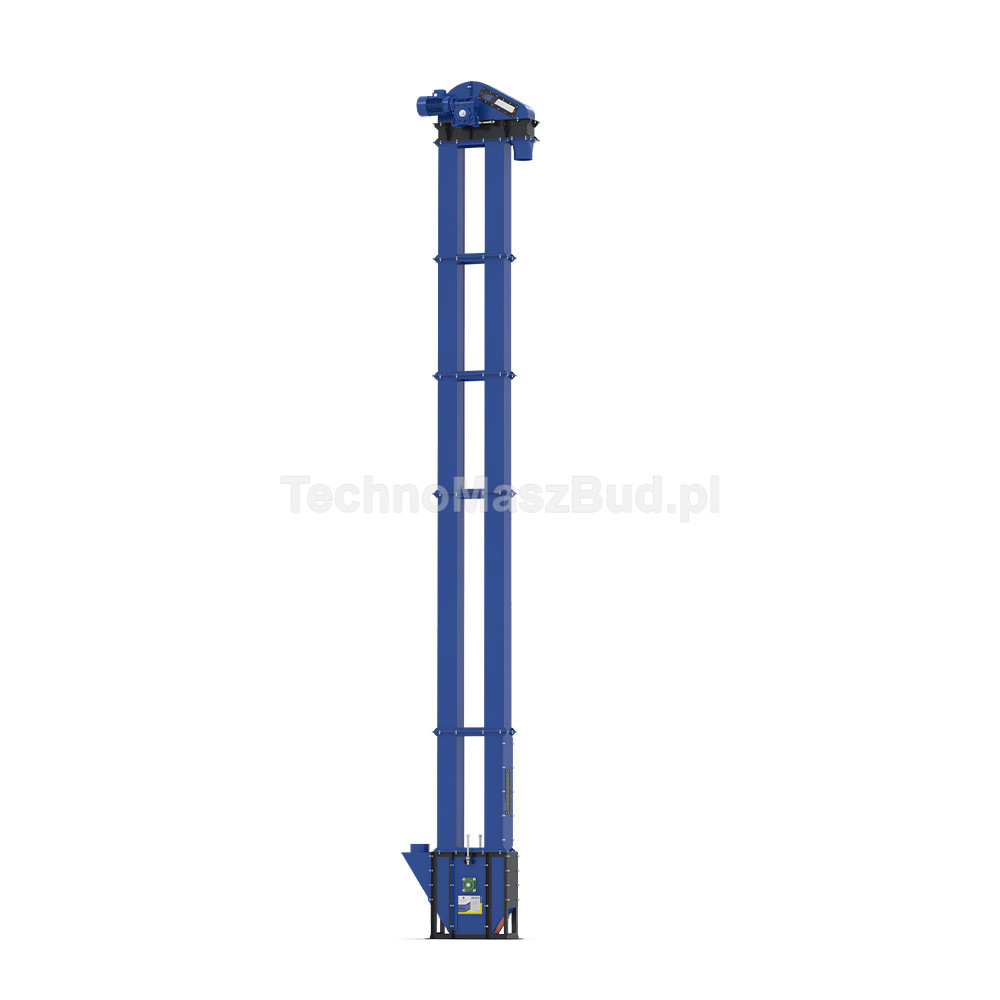

Bucket Elevator PK-650

Description

PK-650 bucket elevator is a modern and reliable device for vertical conveying of grains and bulk materials. Thanks to its continuous operating mode, it works perfectly as a component of automated in-plant conveying lines in the agri-food industry.

Typical applications:

• drying and cleaning lines,
• grain elevators,
• feed, flour, and groats production plants,
• pelletizing lines,
• grain purchasing points,
• loading into silos and warehouses.

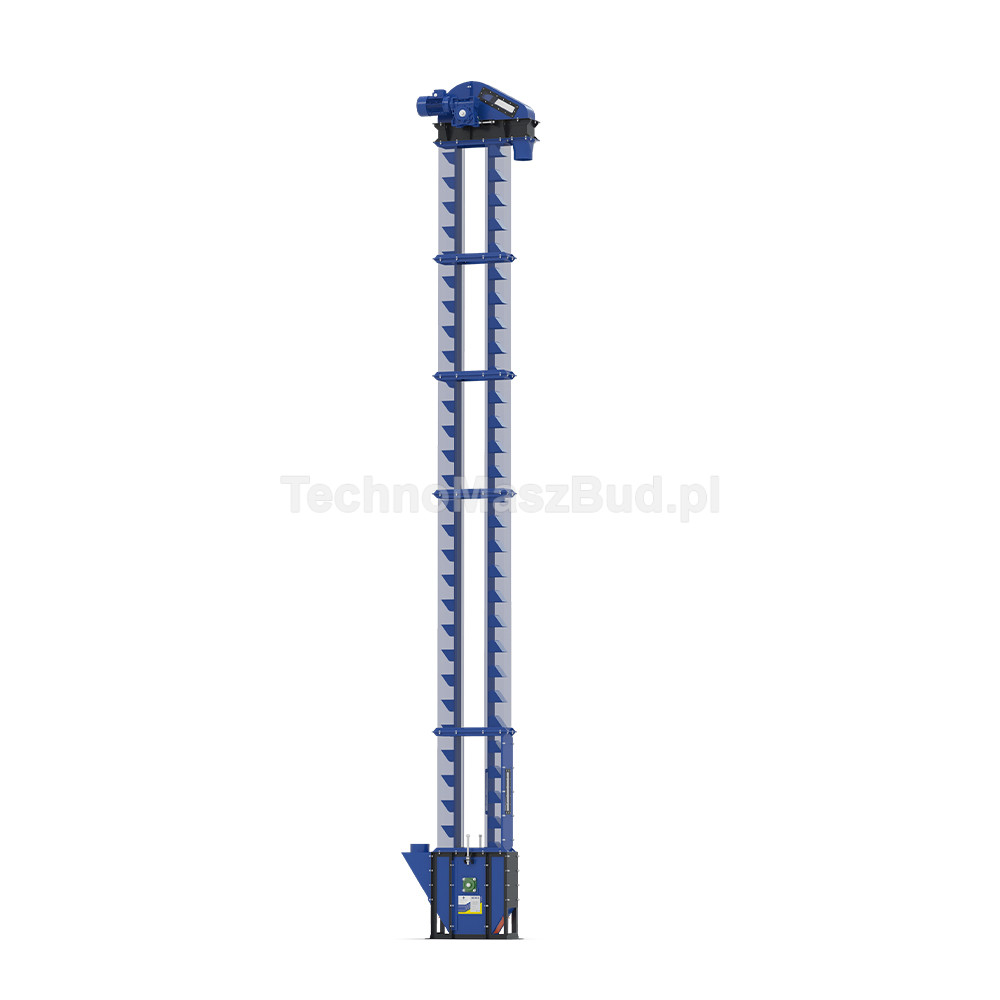

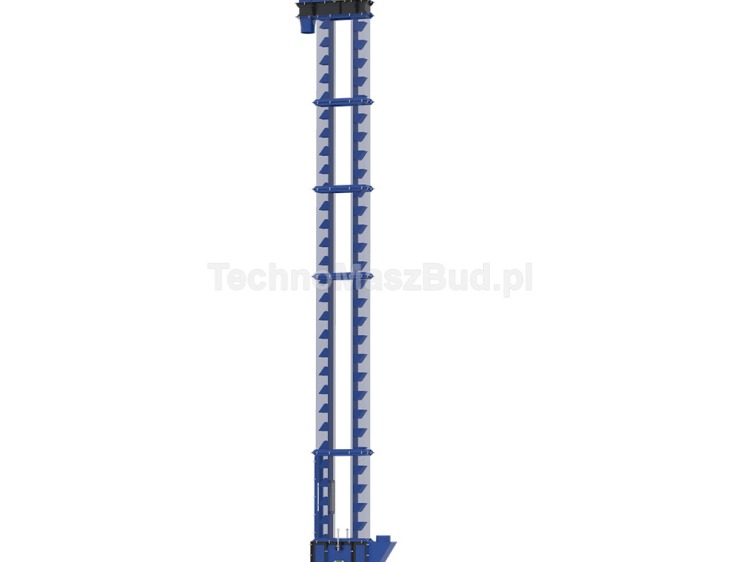

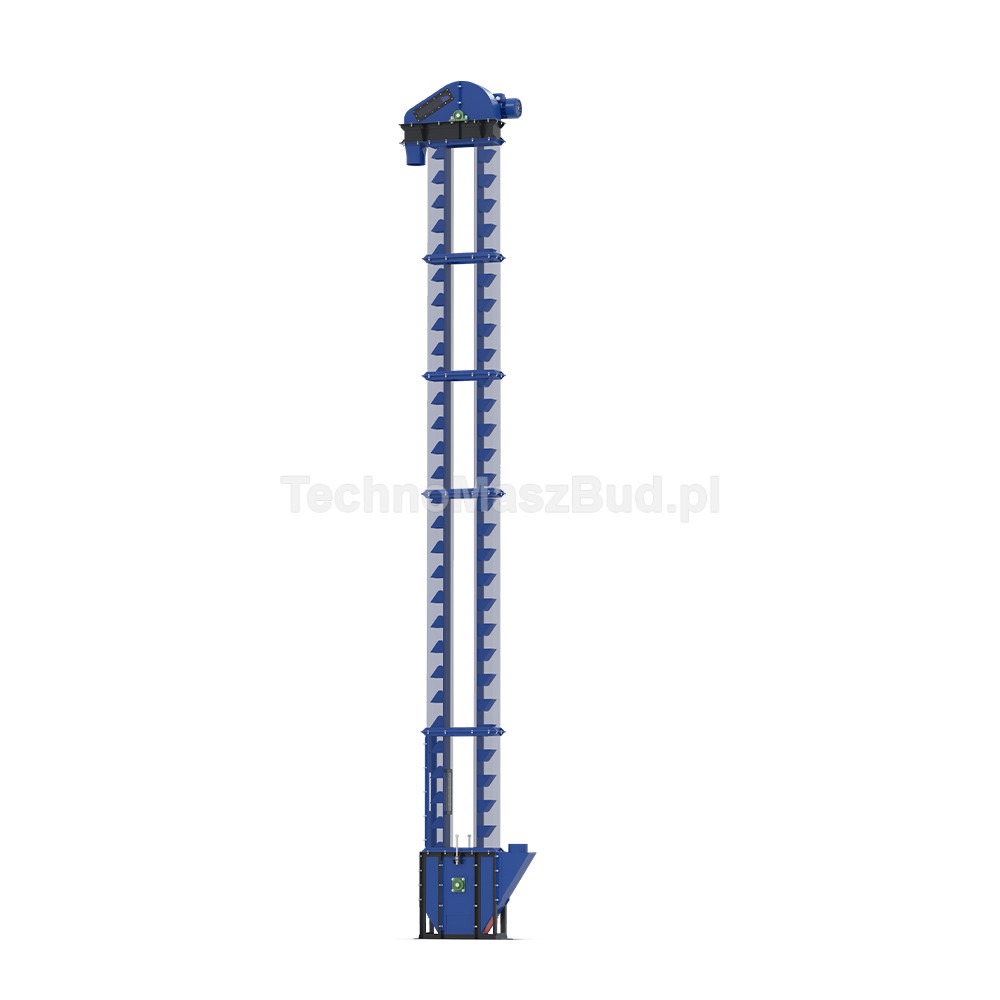

Conveying is performed by a durable belt with evenly spaced buckets, which enables efficient vertical transfer of material with minimal energy consumption. The simple design and easy access to components ensure convenient operation and maintenance.

Technical data:

• Capacity:up to 10 t/h (for wheat)
• Motor power:2.2 kW 220–230 V or 380–400 V
• Drive drum speed:124 rpm
• Belt speed:2 m/s
• Bucket spacing:204 mm
• Bucket dimensions:125 × 110 mm
• Bucket capacity:0.68 L
• Number of buckets:68 pcs.
• Drive drum diameter:294 mm
• Belt dimensions:150 × 4 mm (width × thickness)
• Head dimensions:963 × 427 × 685 mm
• Base dimensions (without hopper):780 × 256 × 720 mm

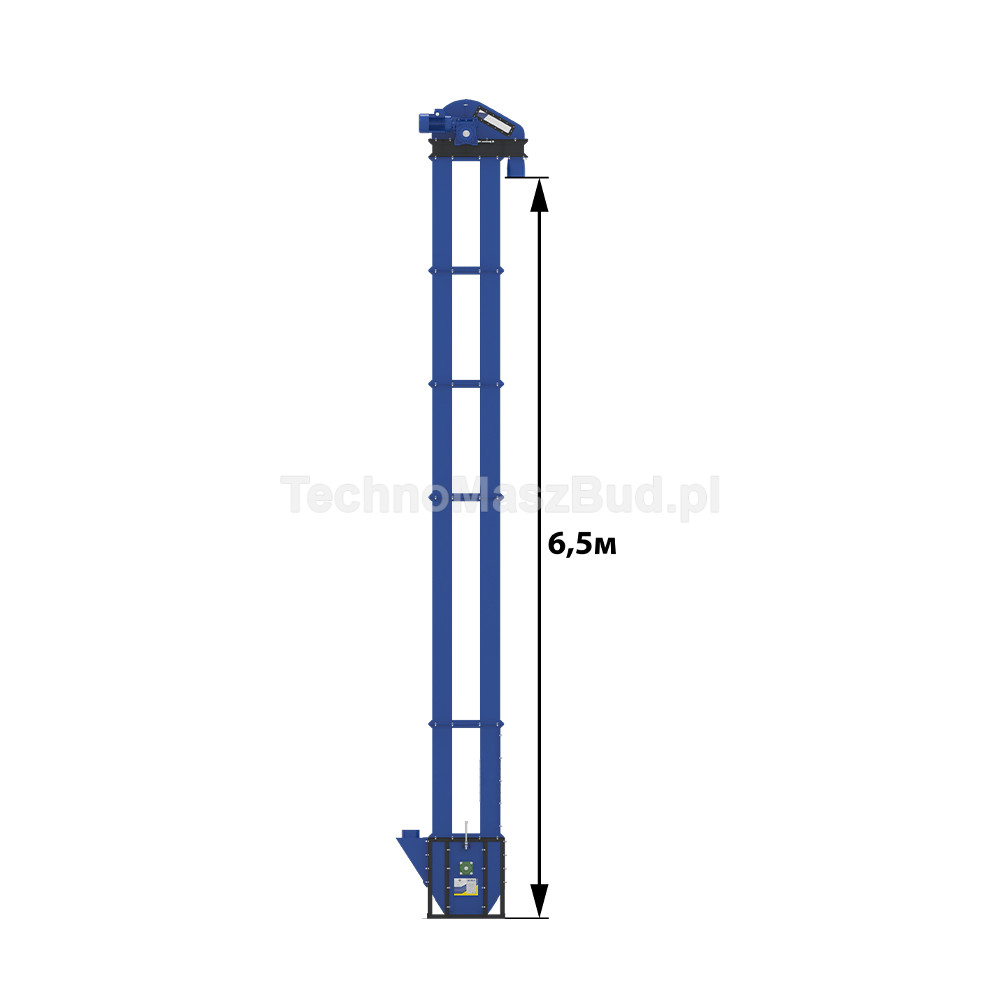

• Overall height:6.5 m
• Bucket material:high-density polyethylene (buckets can be made from other materials, including stainless steel)
