Bucket Elevator PK-550

PK-550 Bucket Elevator is an efficient, vertical, continuous-duty conveyor designed to lift grain and bulk materials. An indispensable component of processing lines in agricultural and food-processing facilities.

Applications:

• grain elevators,
• cleaning and drying systems,
• pelleting lines,
• mills, groat-processing and feed plants,
• grain receiving stations,
• loading into silos and warehouses.

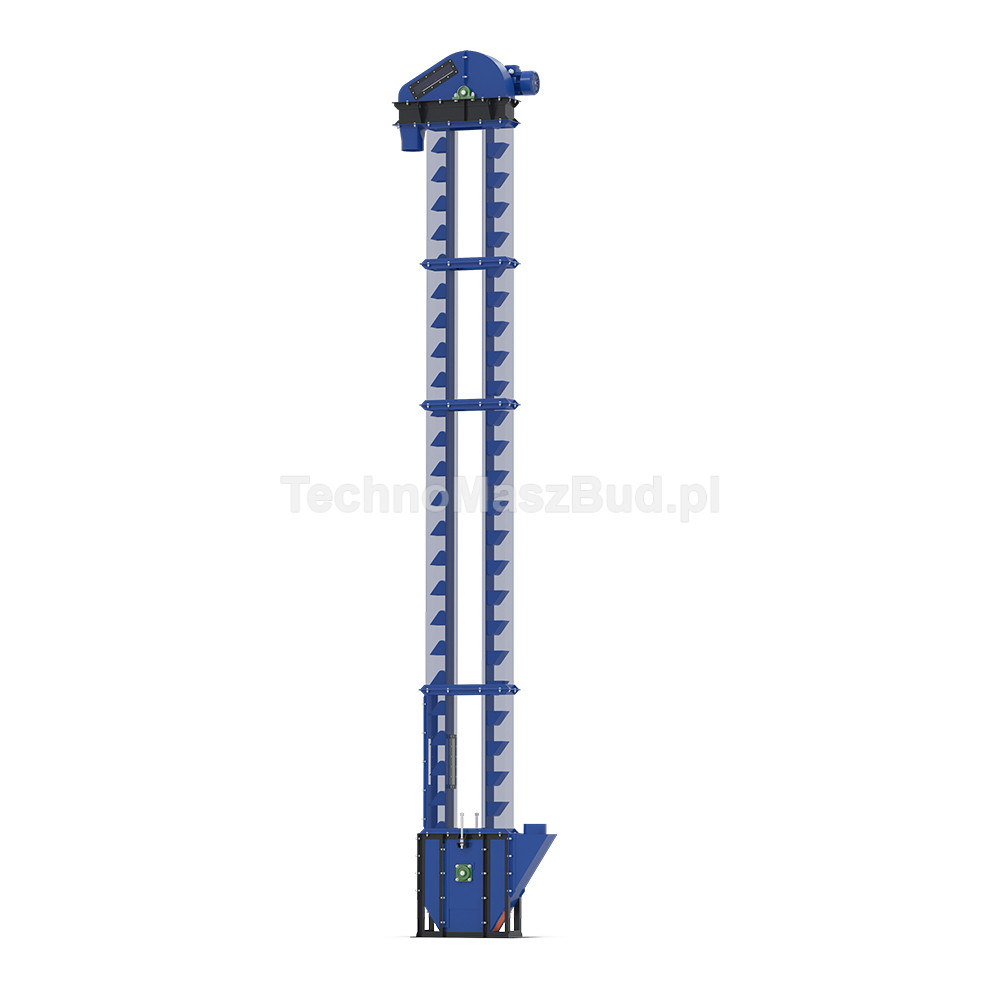

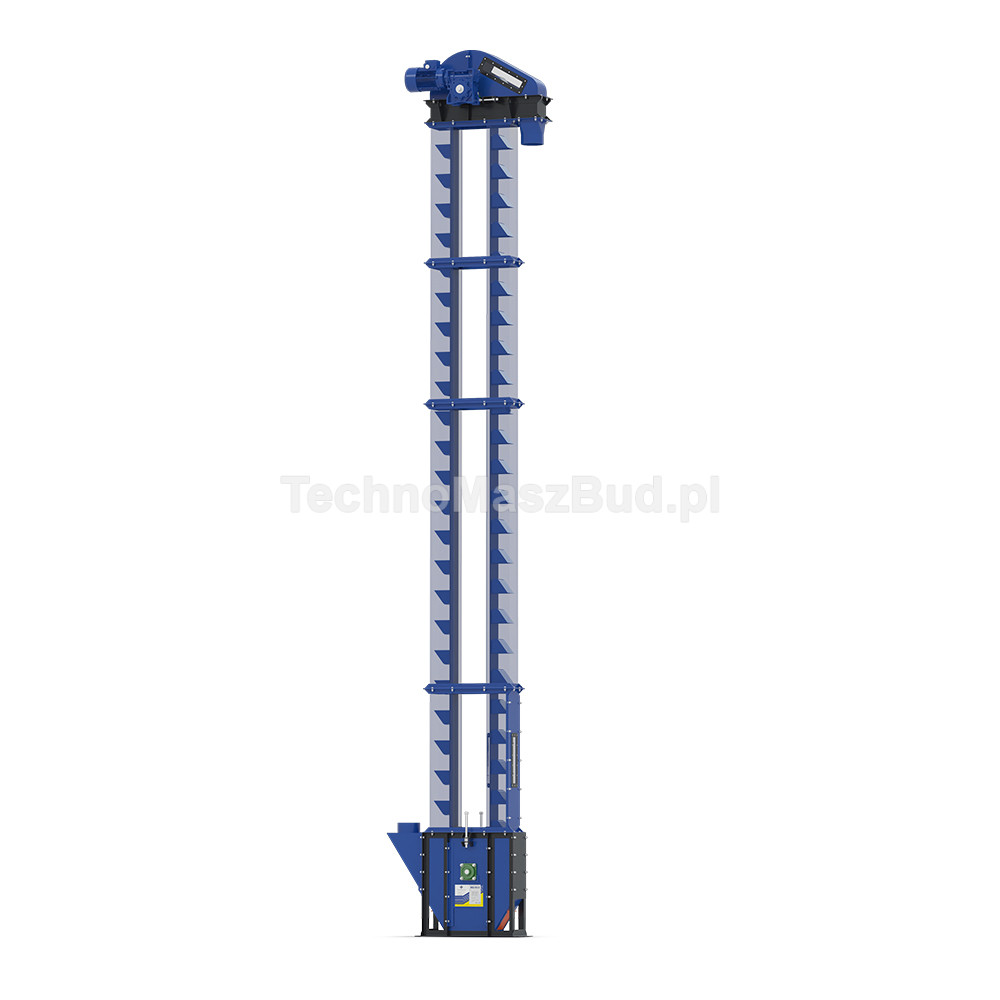

The unit operates by conveying with buckets mounted on a belt, which enables smooth and energy-efficient elevation of materials. The PK-550 is distinguished by its simple design, ease of maintenance, and many years of reliability with proper use.

Technical specifications:

• Capacity:up to 10 t/h (for wheat)

• Motor power:2.2 kW, 220–230 V or 380–400 V

• Drive drum speed:124 rpm

• Belt speed:2 m/s

• Bucket spacing:204 mm

• Bucket dimensions:125 × 110 mm

• Bucket capacity:0.68 l

• Number of buckets:58 pcs.

• Drive drum diameter:294 mm

• Belt dimensions:150 × 4 mm (width × thickness)

• Head dimensions:963 × 427 × 685 mm

• Base dimensions (without hopper):780 × 256 × 720 mm

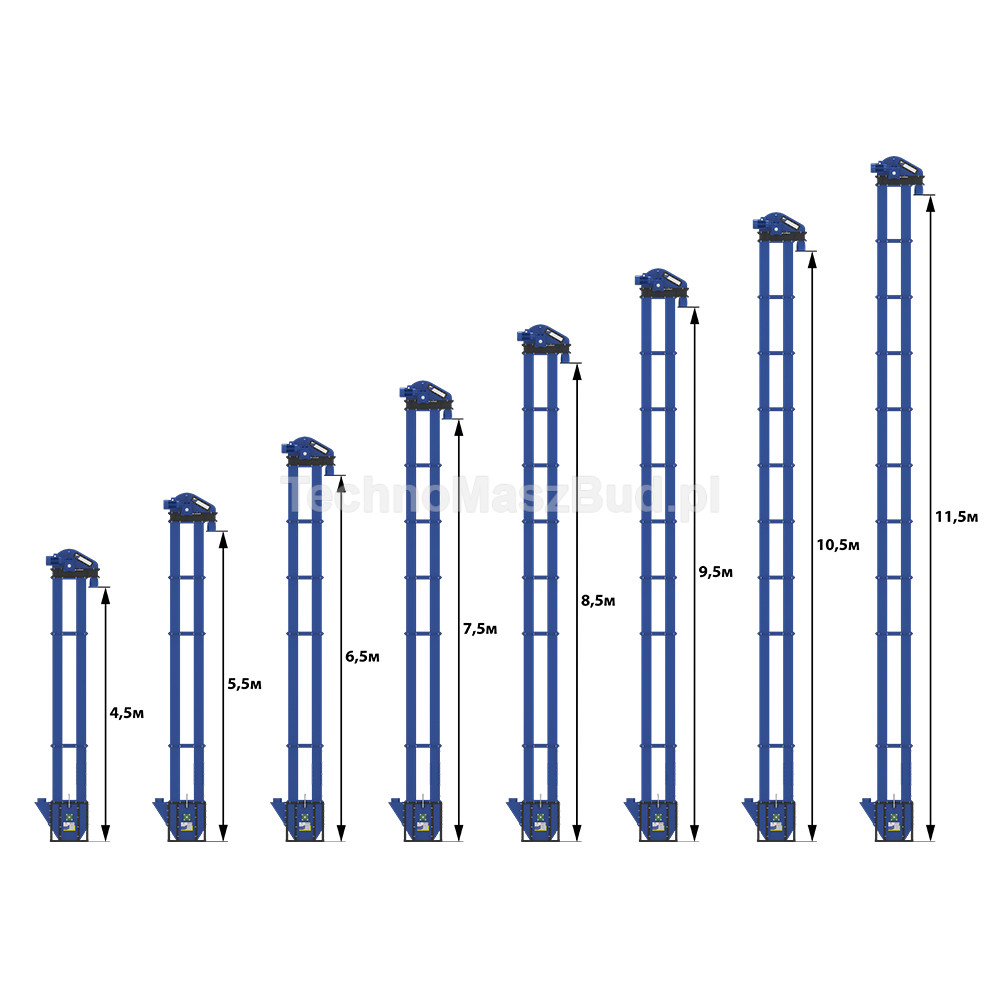

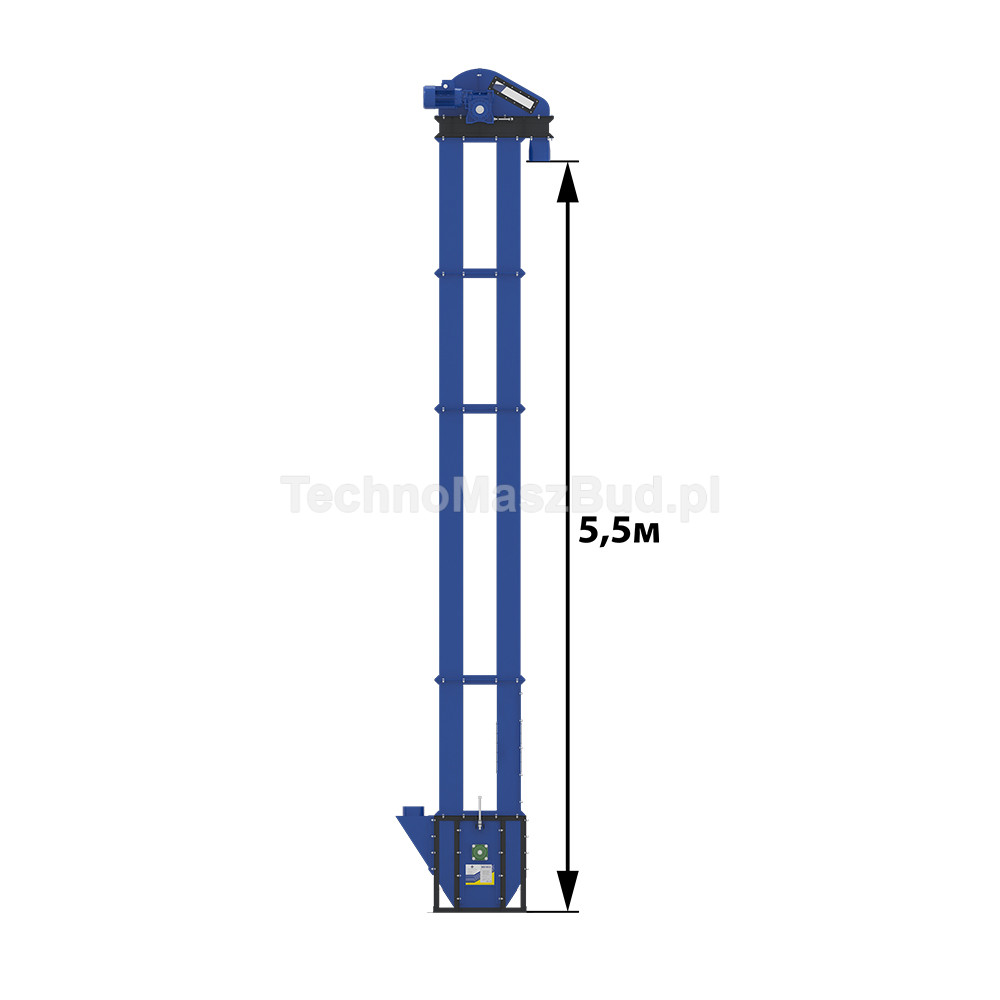

• Overall height:5.5 m
• Bucket material:high-density polyethylene (buckets can be made from other materials, including stainless steel)
