| Make: | TechnoMaszBud |
| Model: | PK-450 + PE-127 6 m |

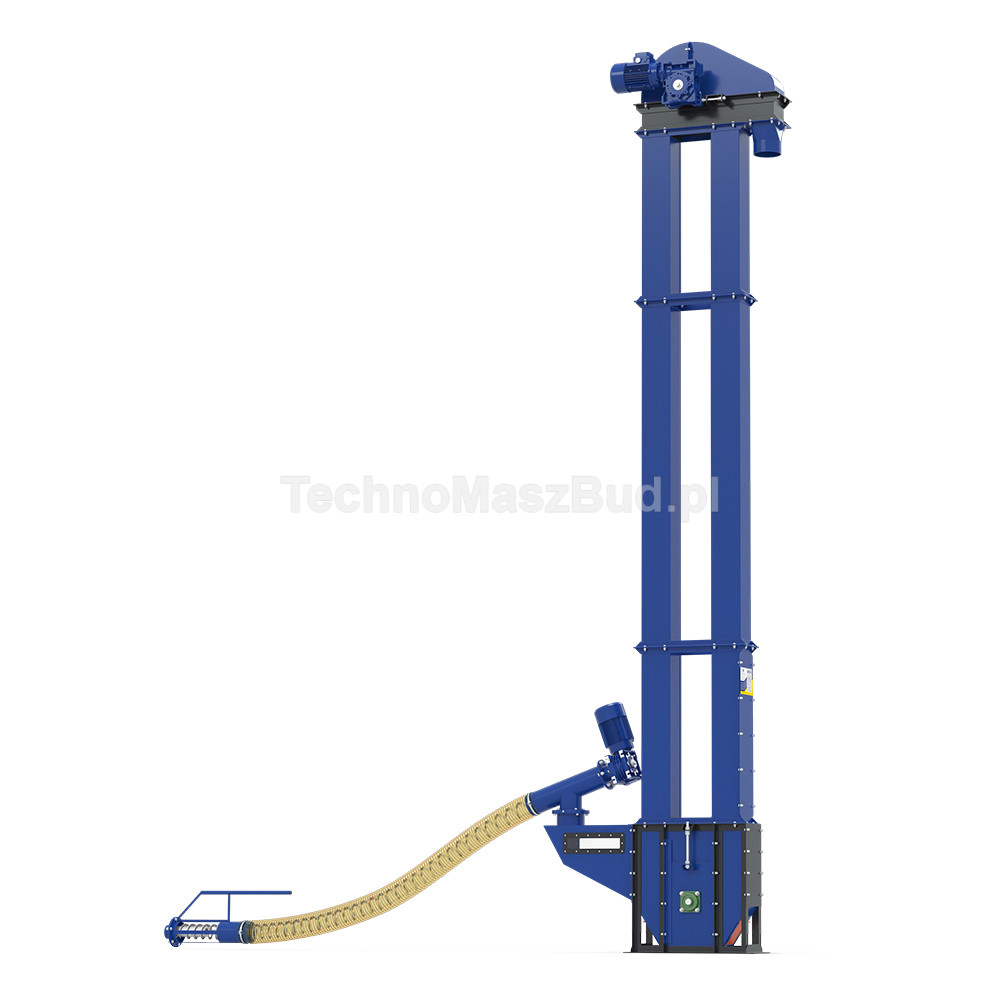

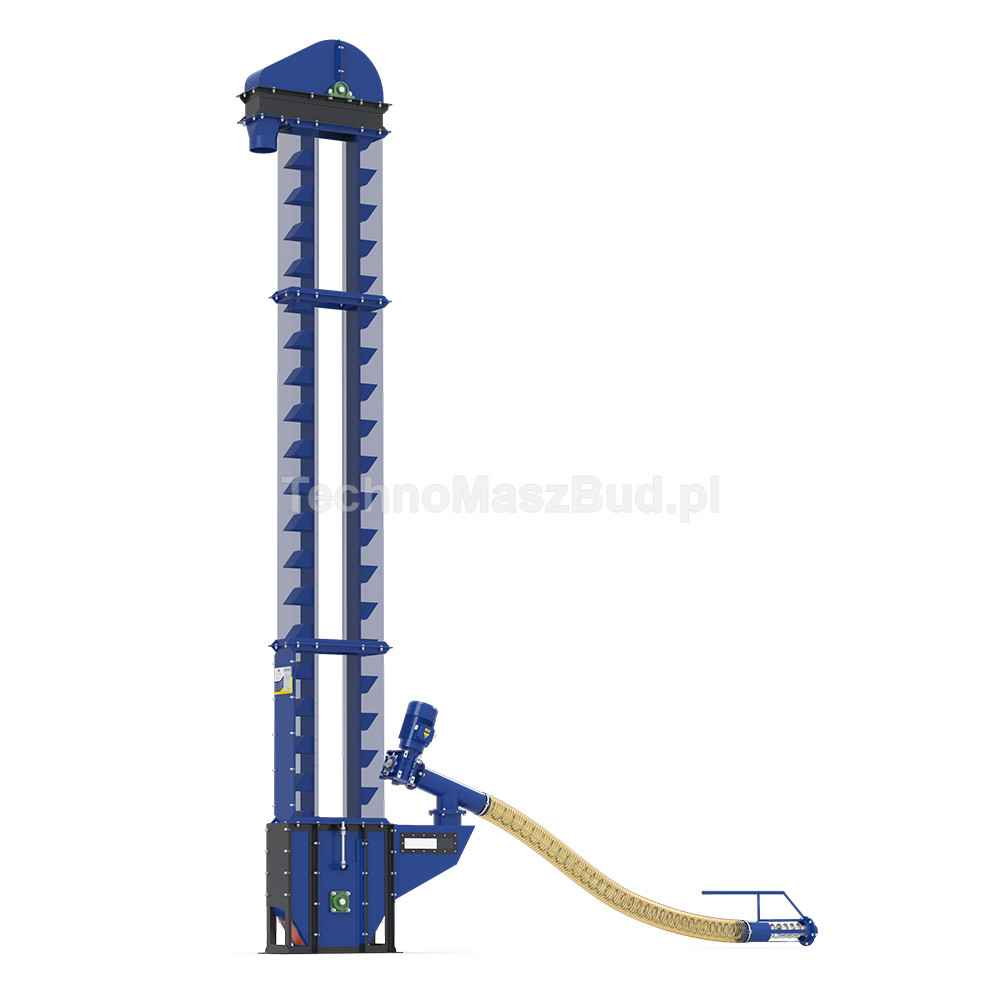

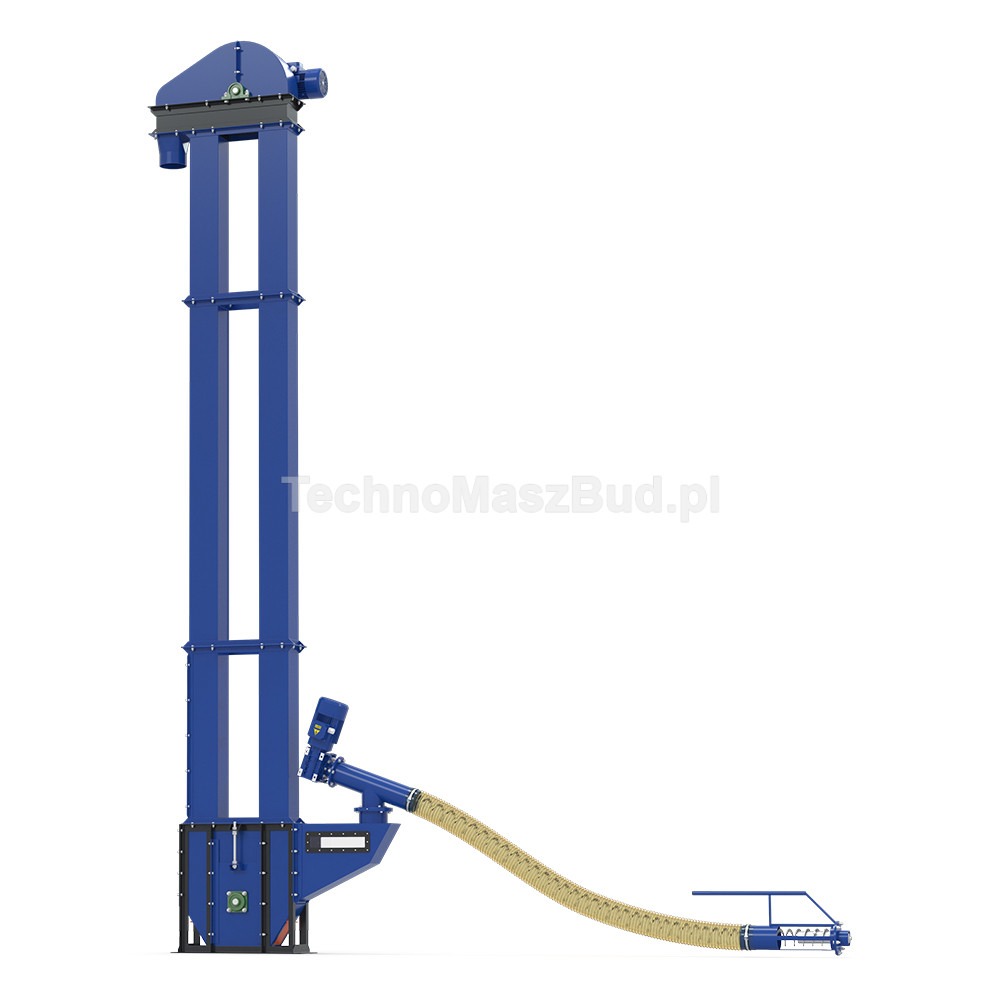

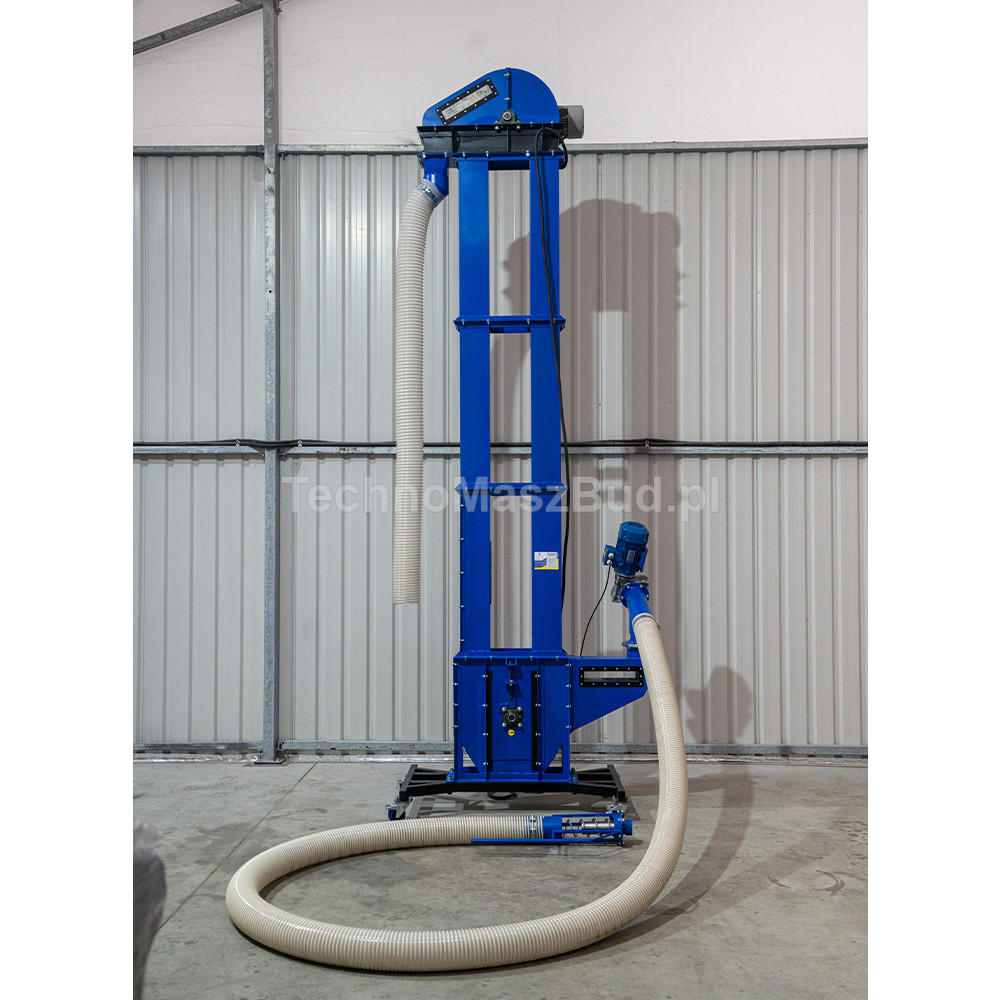

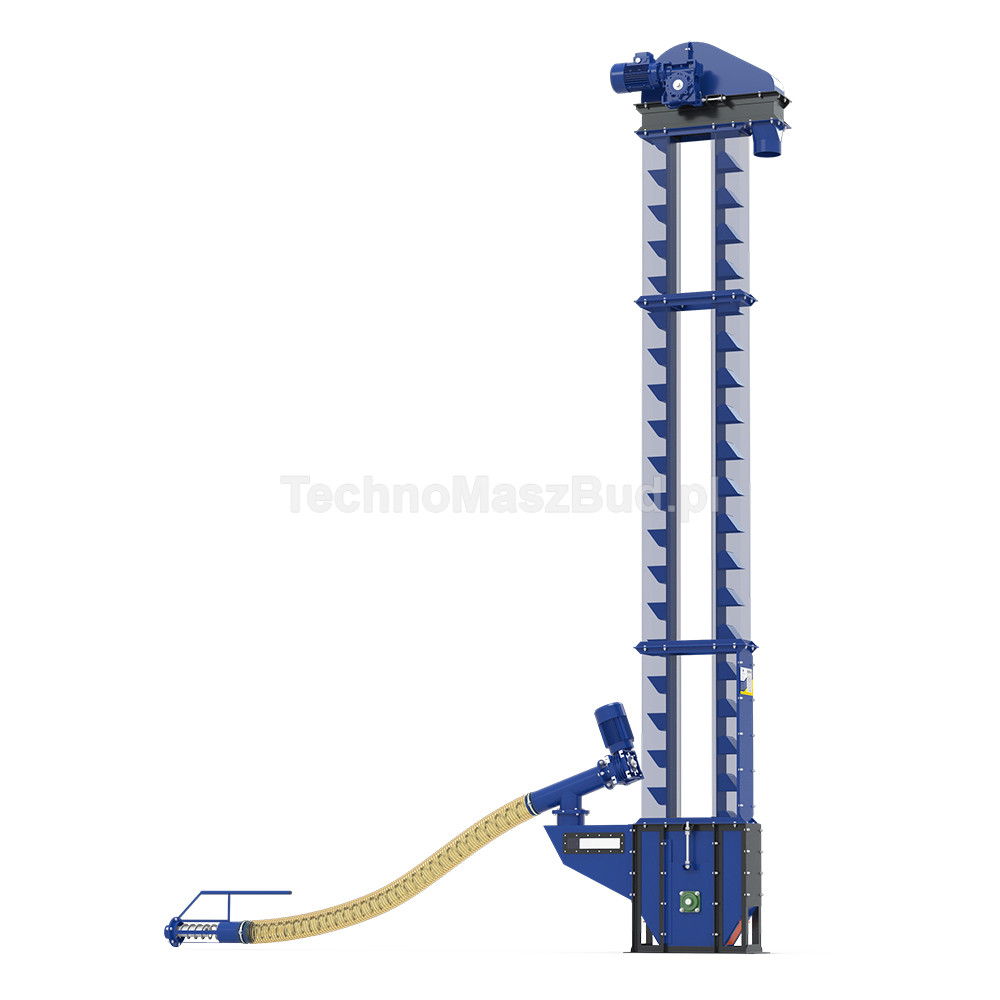

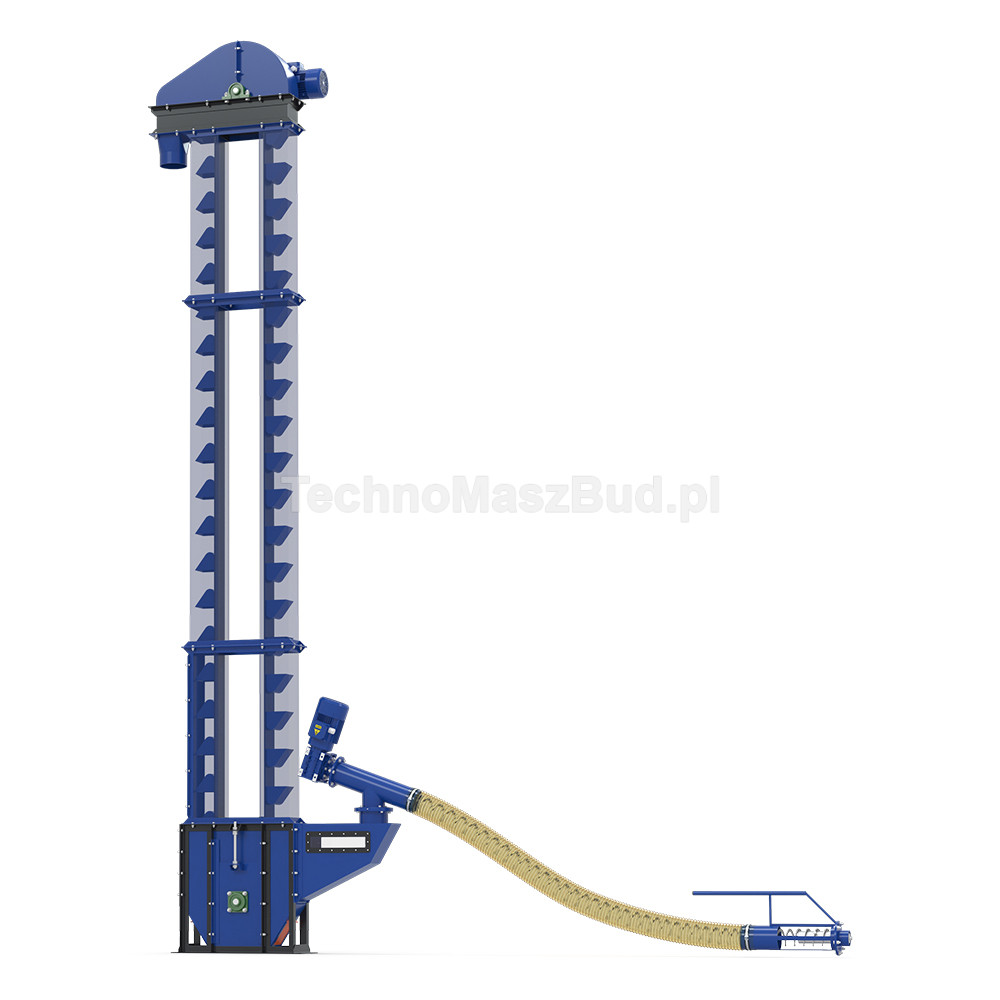

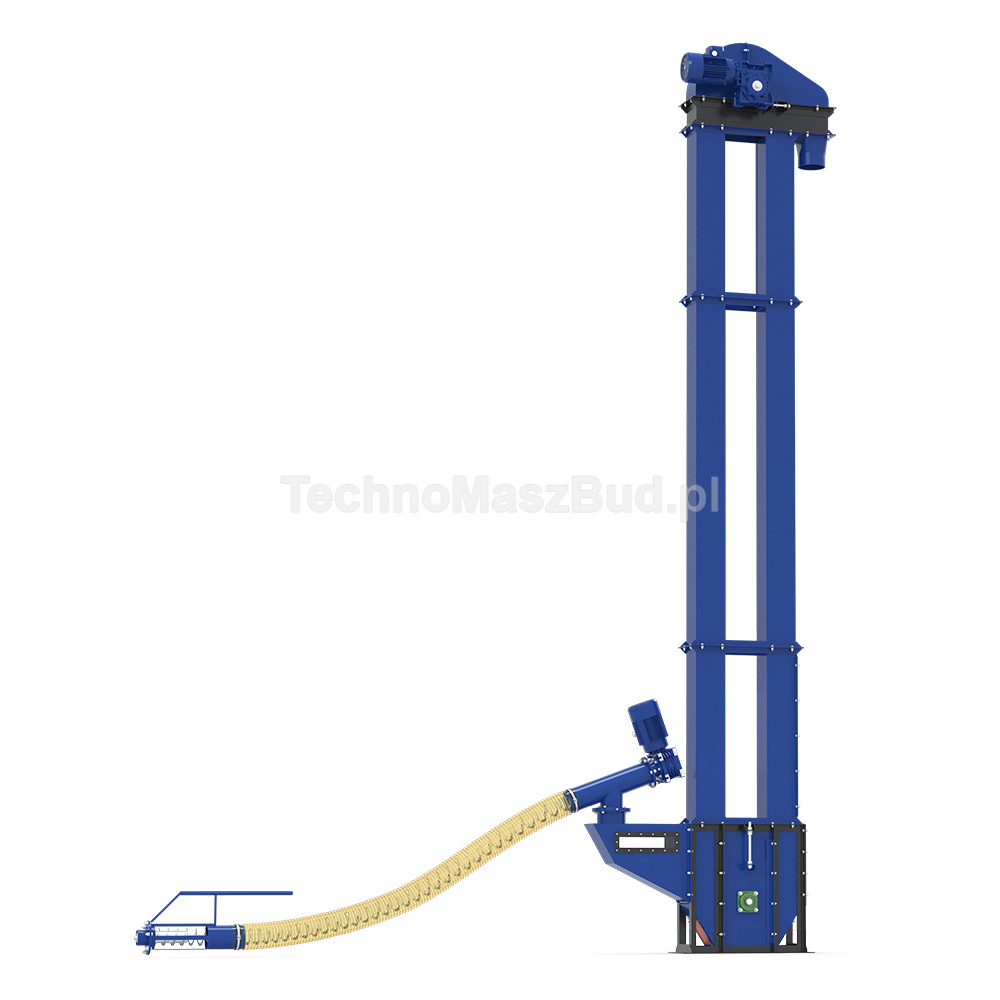

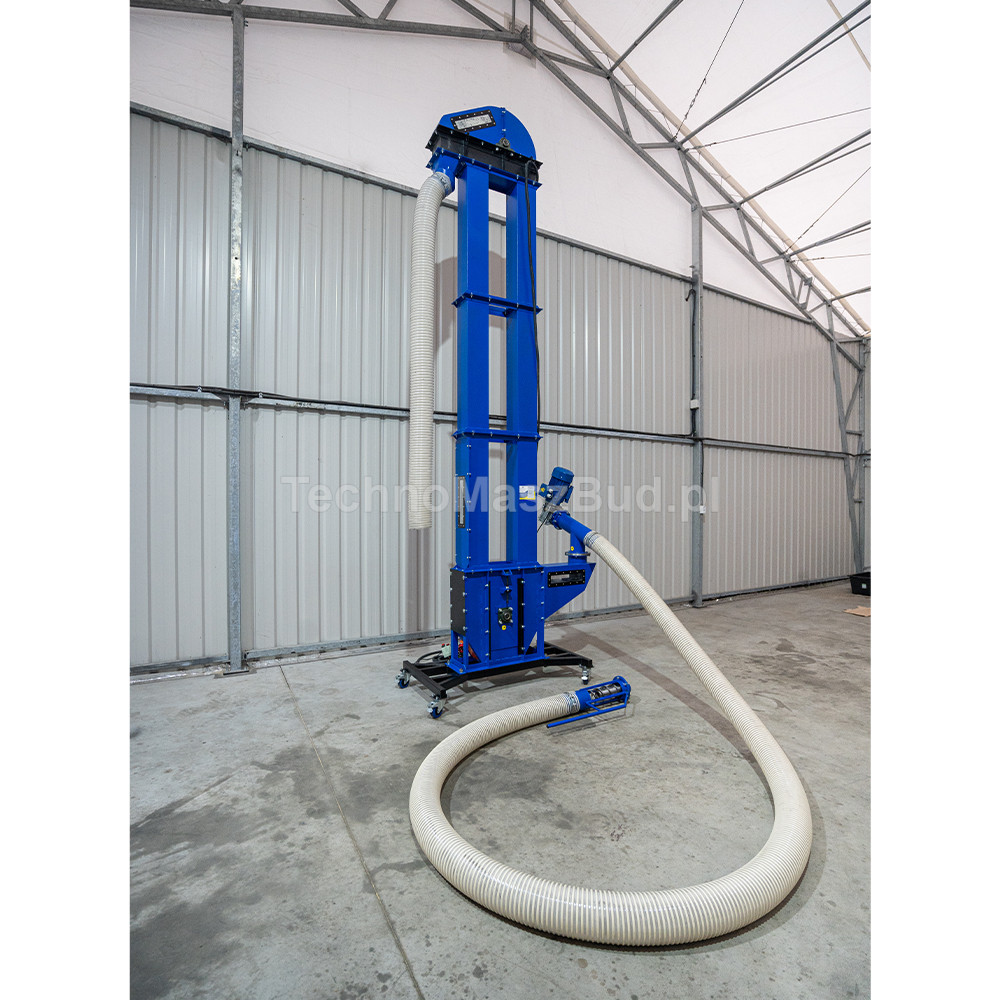

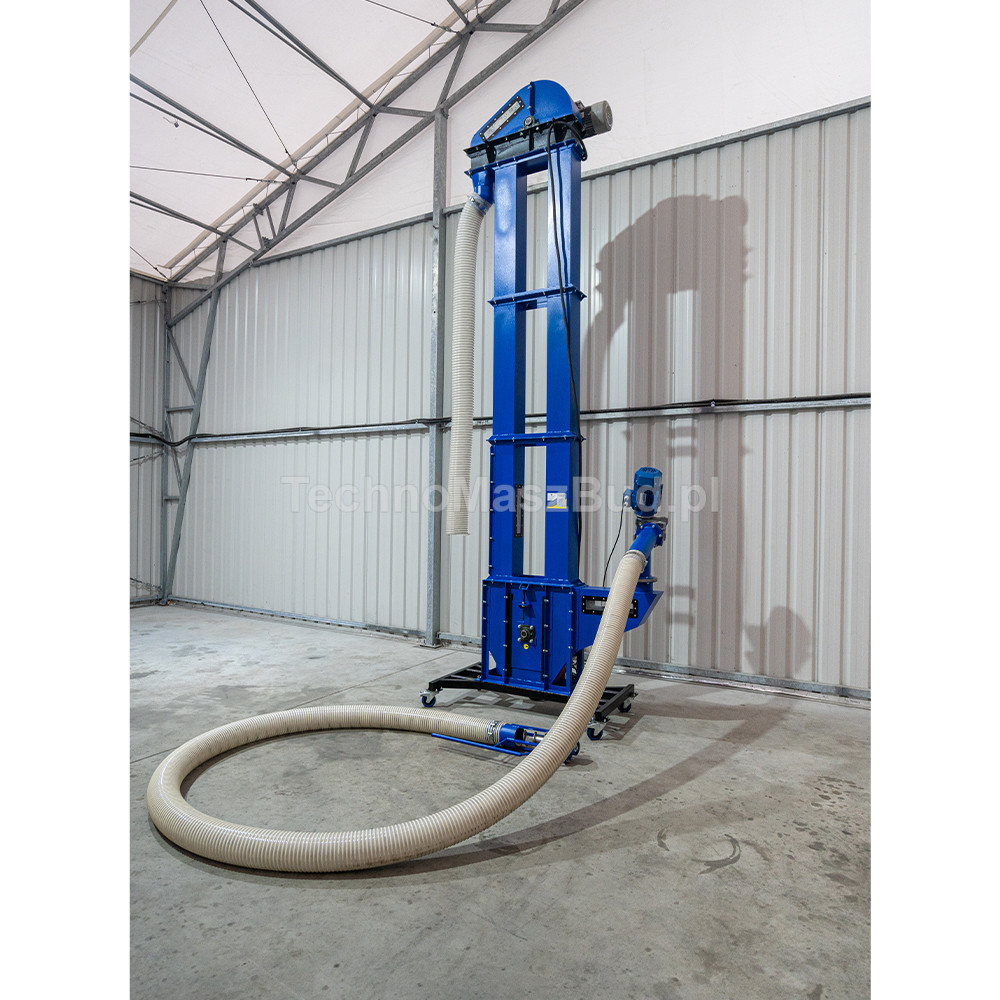

Bucket elevator PK-450 with flexible screw conveyor PE-127 (6 m) is a compact and efficient solution for vertical and horizontal conveying of grain, granules, meal, and pellets. The unit is ideal for automated process lines, combining precision with energy efficiency.
Applications:
- cleaning-drying systems and grain separators,
- feed pelleting lines,
- mills, cereal and feed plants,
- grain receiving stations,
- silo and storage filling systems.
Why choose this set?
- Vertical (bucket elevator) and horizontal (screw) conveying in one system
- Capacity up to 10 t/h with low power consumption
- Reliable design with minimal maintenance requirements
- Flexible screw allows length customization and easy installation
Technical specifications:
- Capacity:up to 10 t/h (wheat)
- Motor power:1.5 kW, 220–230 V or 380–400 V
- Drive drum speed:124 rpm
- Belt speed:2 m/s
- Bucket pitch:204 mm
- Bucket dimensions:125 × 110 mm
- Bucket capacity:0.68 l
- Number of buckets:48 pcs
- Drum diameter:294 mm
- Belt dimensions:150 × 4 mm
- Head dimensions:963 × 427 × 685 mm
- Base dimensions (without hopper):780 × 256 × 720 mm
- Discharge height:4.54 m
- Bucket material:high-density polyethylene (buckets can also be made from other materials, including stainless steel)
Screw conveyor technical parameters:
- Diameter:Ø127 mm
- Length:6 m (longer screw conveyors available)
- Motor power:2.2 kW, 380–400 V
Combining two types of conveyors in a single system ensures smooth operation and saves floor space in the production hall.
