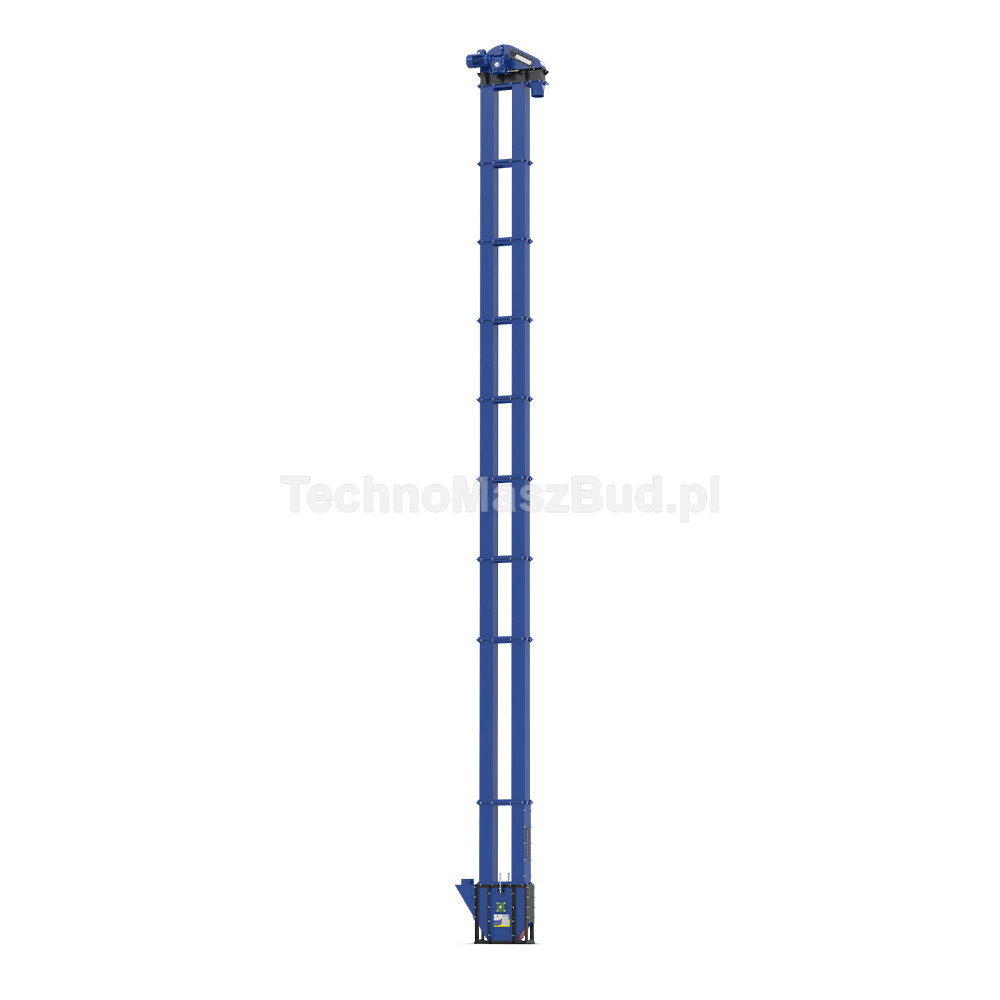

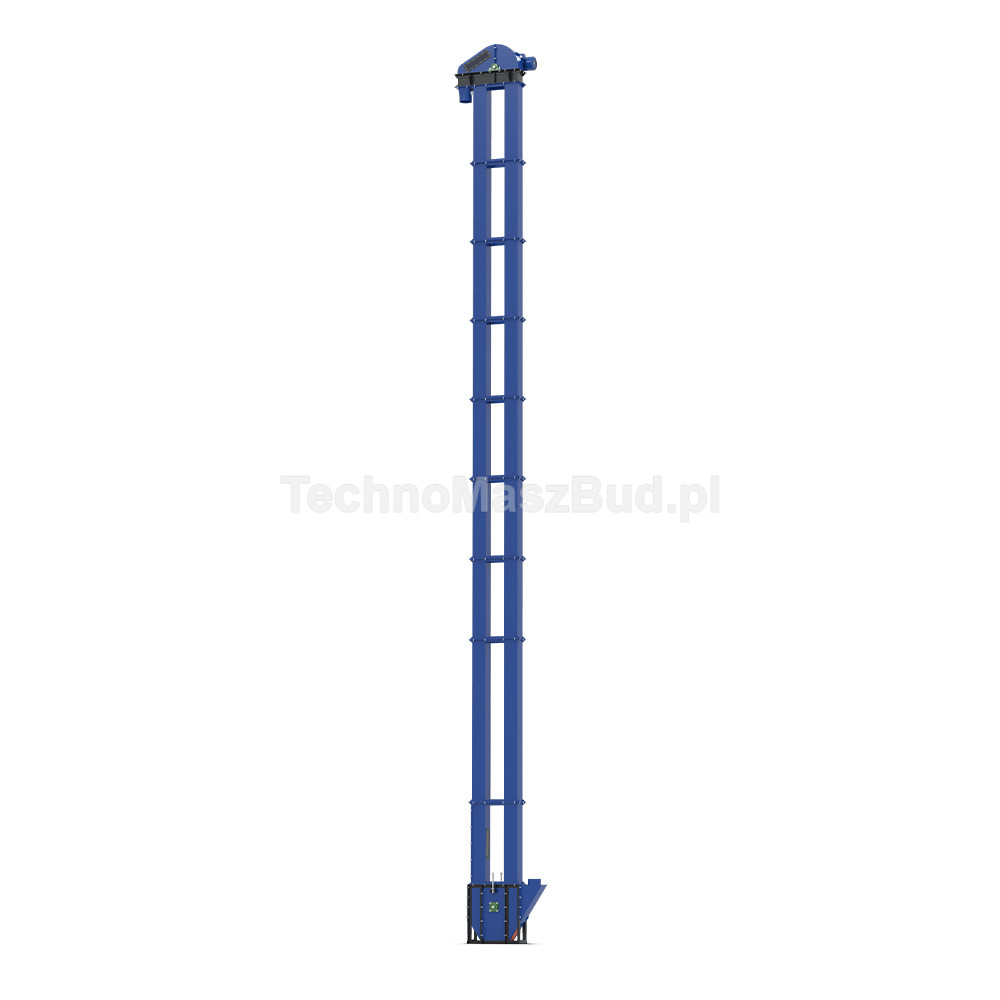

Bucket Elevator PK-1050

Description

PK-1050 bucket elevator is a modern solution for vertical conveying of grains and their processed products, such as pellets or loose feeds. The unit is designed for safe, continuous operation in industrial environments, ensuring high performance and reliability.

Applications:

• cleaning and drying installations,
• pelletizing lines,
• grain elevators,
• mills, feed mills, groats-processing plants,
• grain intake points and agricultural storage facilities.

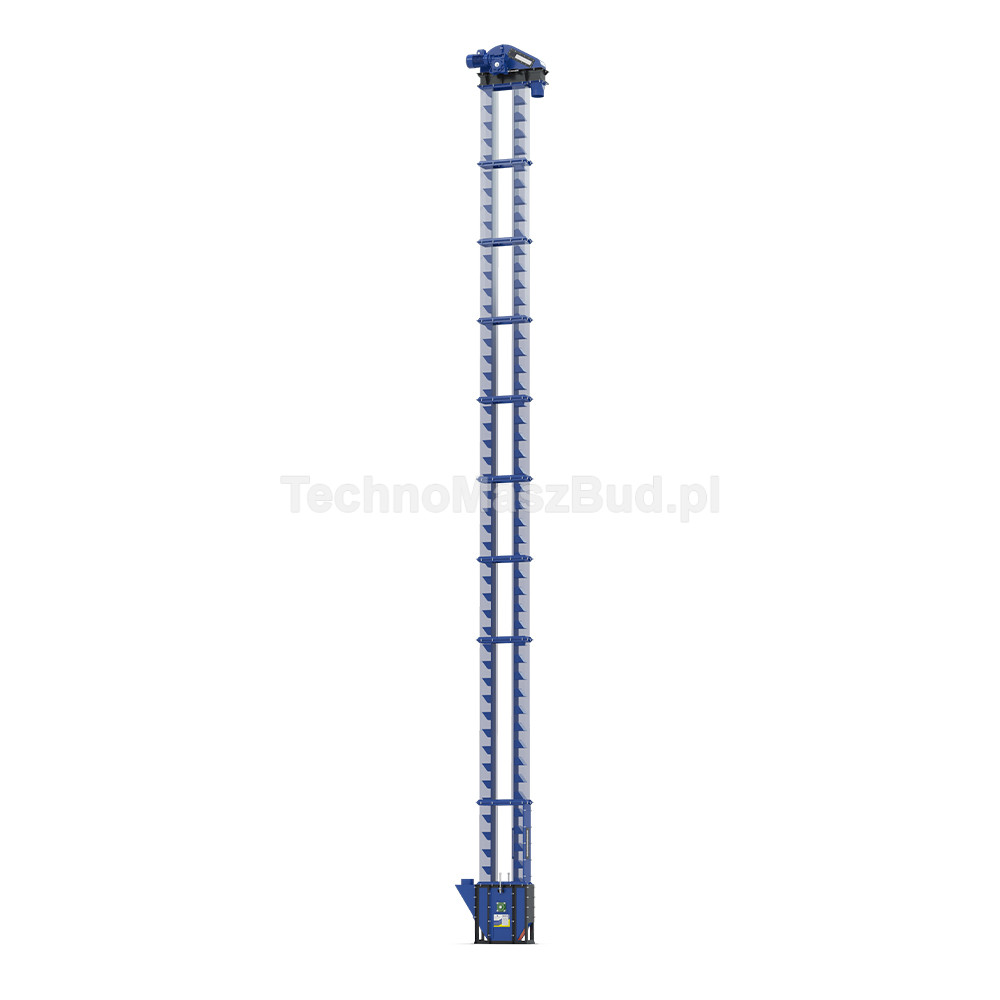

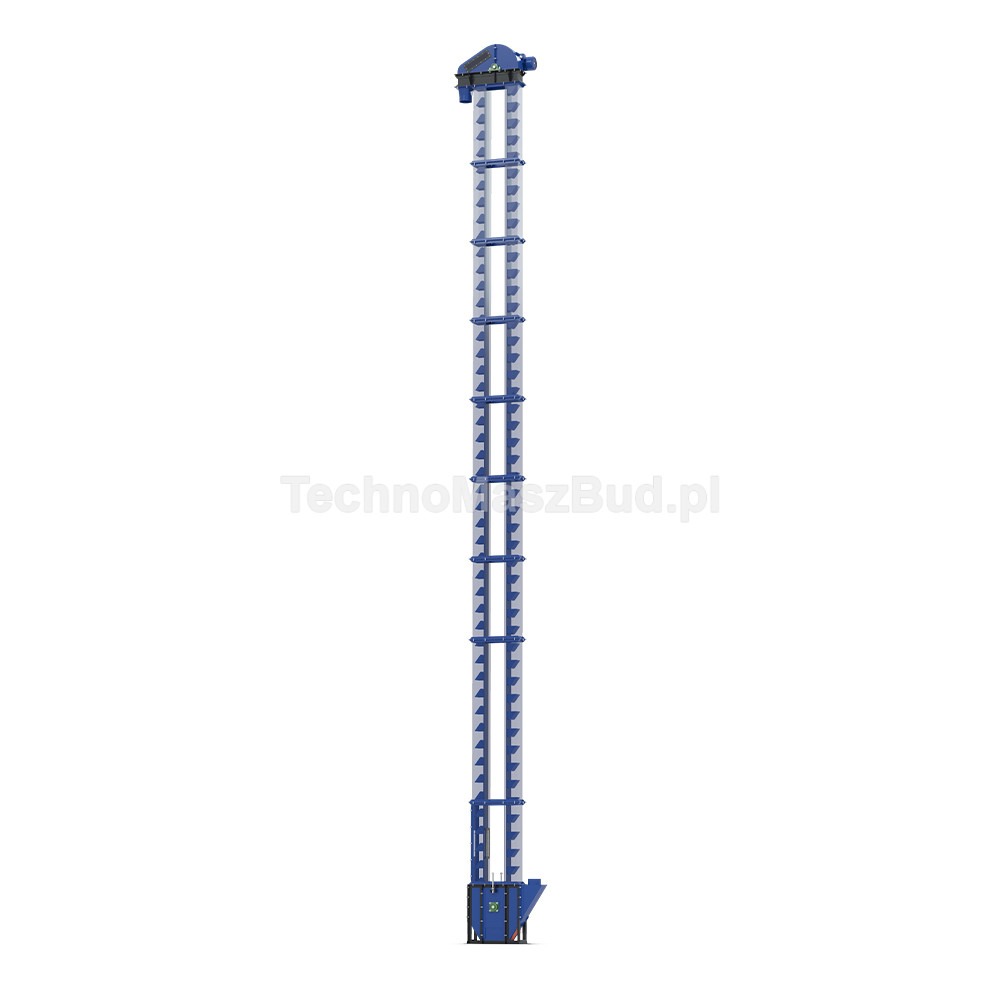

The PK-1050 is based on a flexible belt system with buckets, which enables efficient, uninterrupted vertical conveying of materials. Thanks to low maintenance requirements and compliance with current safety and energy efficiency standards, the unit is a reliable component of any modern process line.

Technical data:

• Capacity:up to 10 t/h (for wheat)
• Motor power:2.2 kW, 220–230 V or 380–400 V
• Drive drum speed:124 rpm
• Belt speed:2 m/s
• Bucket pitch:204 mm
• Bucket dimensions:125 × 110 mm
• Bucket volume:0.68 l
• Number of buckets:105
• Drive drum diameter:294 mm
• Belt dimensions:150 × 4 mm (width × thickness)
• Head section dimensions:963 × 427 × 685 mm
• Base dimensions (without hopper):780 × 256 × 720 mm

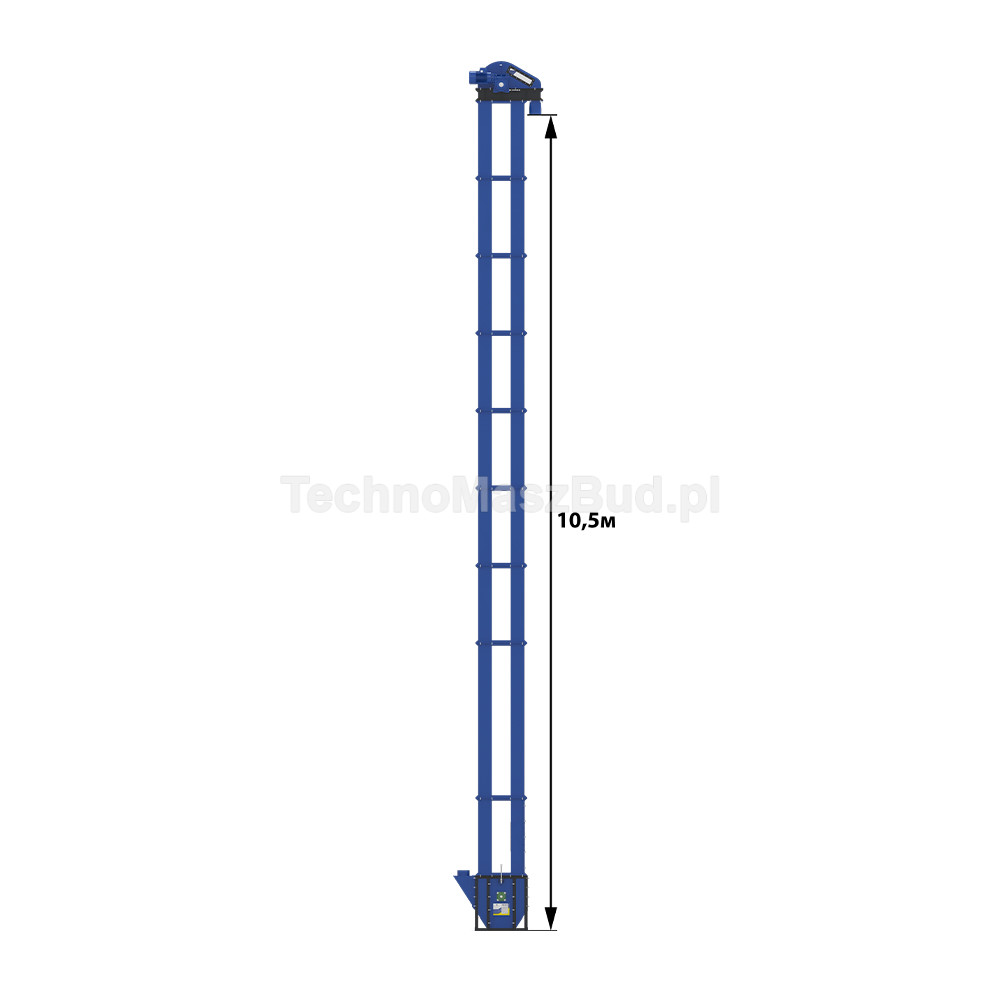

• Total height:10.5 m
• Bucket material:high-density polyethylene (buckets can also be made from other materials, including stainless steel)
